Vulcan 014 and 016 Hammers: Specifications and Information

The 014 and 016 hammers were the first single-acting hammers Vulcan produced based on the Super-Vulcan design.  The main difference between the two was the ram weight, as can be seen below.

These hammers are without the Vari-Cycle feature; the drawing at the very top shows the Vari-Cycle added.

Specifications for the onshore hammers (which sported 32″ female jaws) are below.

The 016 was the basis of the Conmaco 160, which Vulcan first produced for Conmaco before they “struck out on their own.”

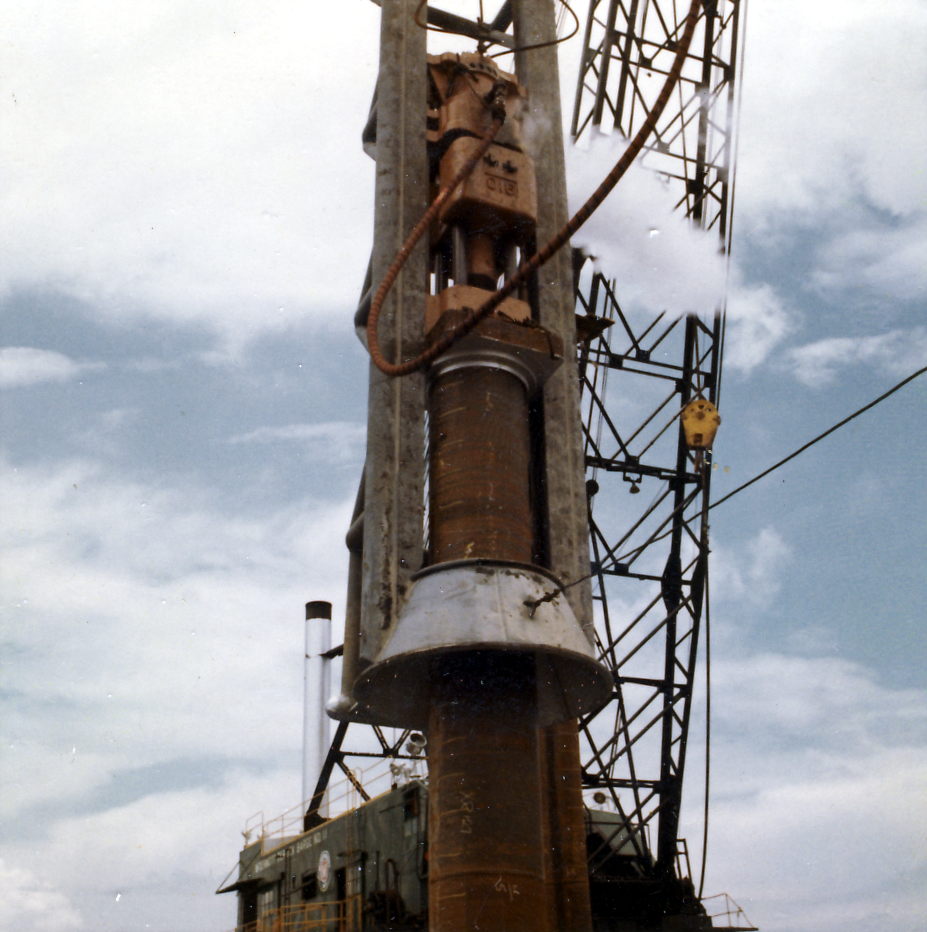

Vulcan also produced these hammers in an offshore configuration with 54″ male jaws, as shown below.  The first of these was for Ingram Contractors (that’s right, the subsidiary of the book distribution company, they got into the platform installation business) in 1968.  T.L. James and McDermott also purchased these hammers.

Specifications for the offshore hammers are below.

DWPB1961
Vulcan Drawing DWPB-1961 (Offshore Hammer Specifications)

One major difference between the offshore and onshore models is the raised vs. lowered steam chest.  The onshore model cylinder design was modelled after the Super-Vulcan hammers, which required a steam chest raised above the bottom of the cylinder.  For the offshore hammers this was dispensed with and the steam chest design was more like the Warrington-Vulcan hammers, low on the cylinder.  The main benefits were a shorter slide bar and less chance for core burn-in in the air/steam passages.

The heavier build of these hammers (as opposed to the earlier single-acting hammers) was more beneficial offshore than onshore.  The frame is more durable (although it’s hard to argue with a configuration that lasts 120 years!) but this added to the weight.

D77V1010
Vulcan toyed with the idea of a 5′ stroke version of the 014 and 016 hammers; this is the 016 version, or the 516. Vulcan never built this and towards the end gravitated towards a 5′ stroke version of the larger Raymond “0” series hammers, which were closer to the original Warrington-Vulcan concept and lighter.

The weight of the 014 and 016 may have put them at something of a disadvantage, but they have given good service in the sixty-years they’ve been out, as can be seen in this video (courtesy of Pile Hammer Equipment.)
