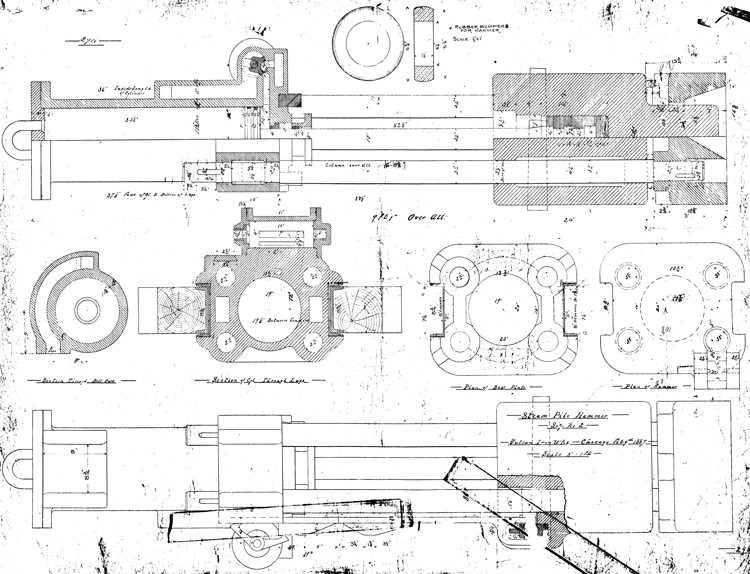

On our Engineering at Vulcan page, we posted this general arrangement of the Vulcan #2 dated 1887.

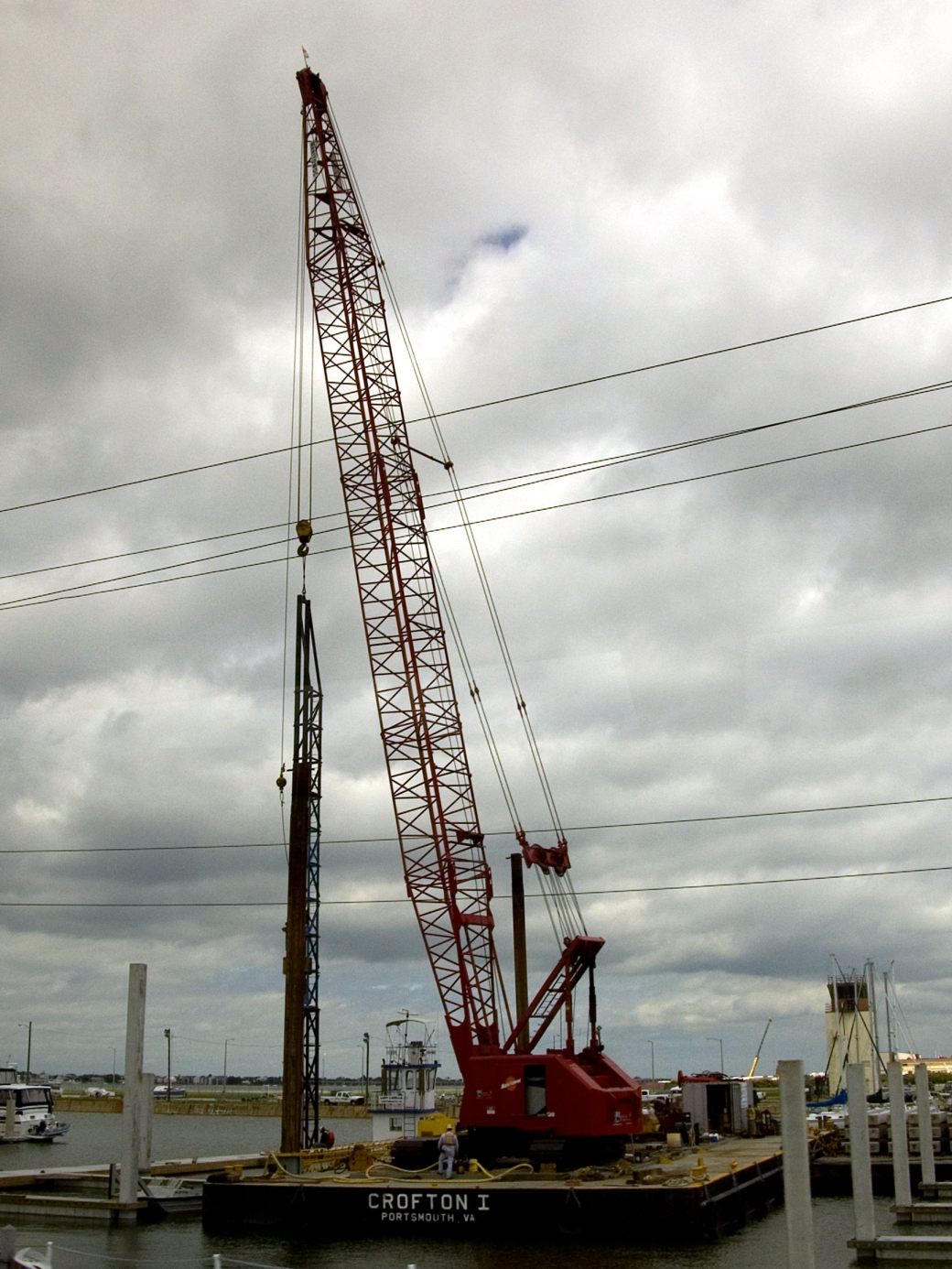

Little did we suspect that we’d need that drawing, but then these photos from Crofton Diving of Portsmouth, VA, arrived:
The hammer in question is Vulcan S/N 116, originally sold to the Florida East Coat Railroad (not far from the West Palm Beach facility) in 1897. The distinctive “open” slide bar design was changed about that time to what is on virtually every Warrington-Vulcan and Super-Vulcan hammer made since. Vulcan Foundation Equipment was able to make the spare parts Crofton required from the original detail drawings.
“Planned obsolescence” wasn’t the Vulcan way in 1897 or afterwards, which is why a 120-year old product is still driving pile and being useful to the contractor.
