Vulcan #2 Hammer: Specifications and Information

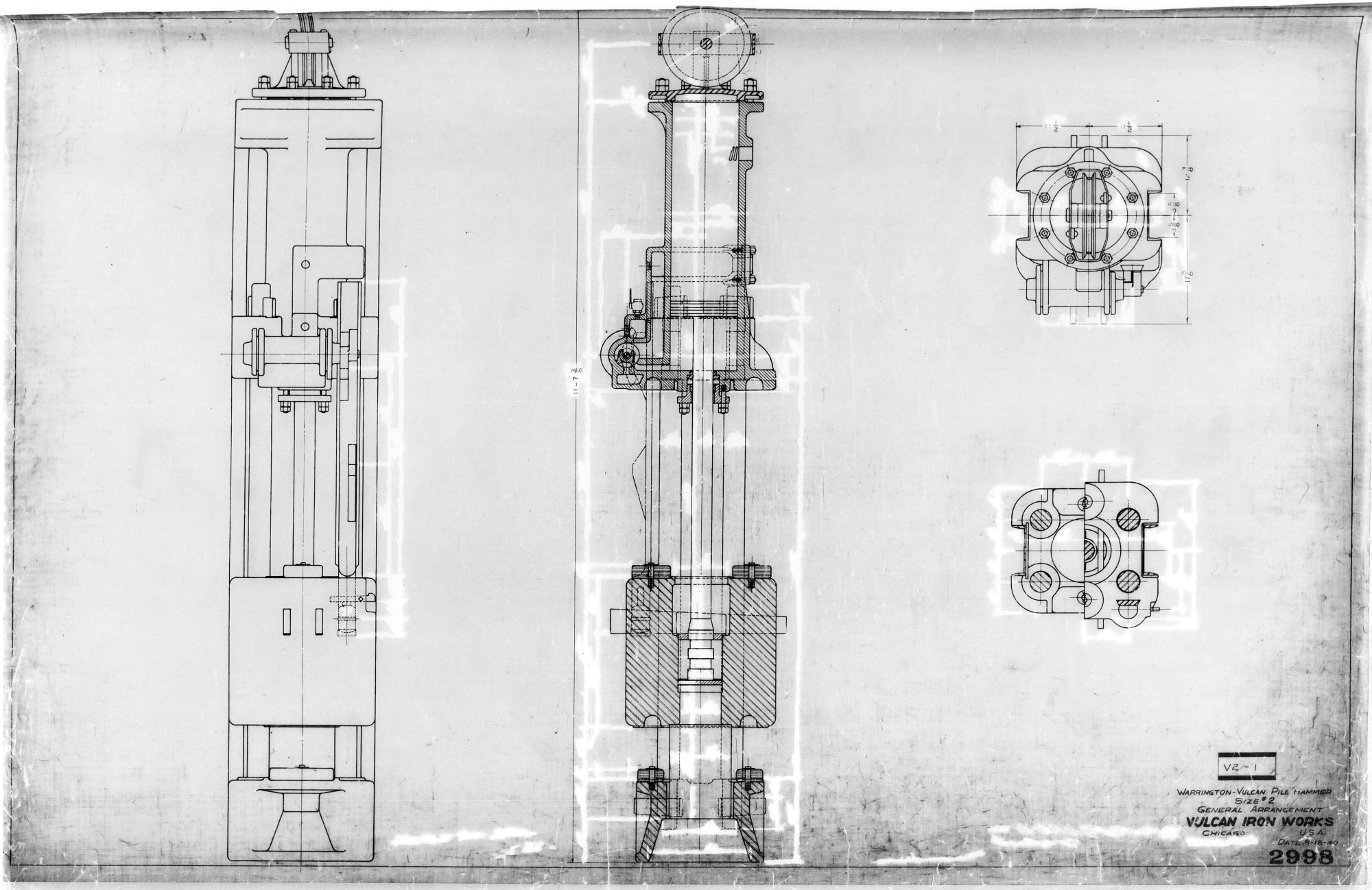

The #2 was one of the earliest “Warrington-Vulcan” single-acting hammers to be produced.  The first one was S/N 6, made for the Marquette, Houghton and Ontonagon Railroad Company.  The general arrangement for the hammer is above.

2-Steam-Pile-Hammer-1887

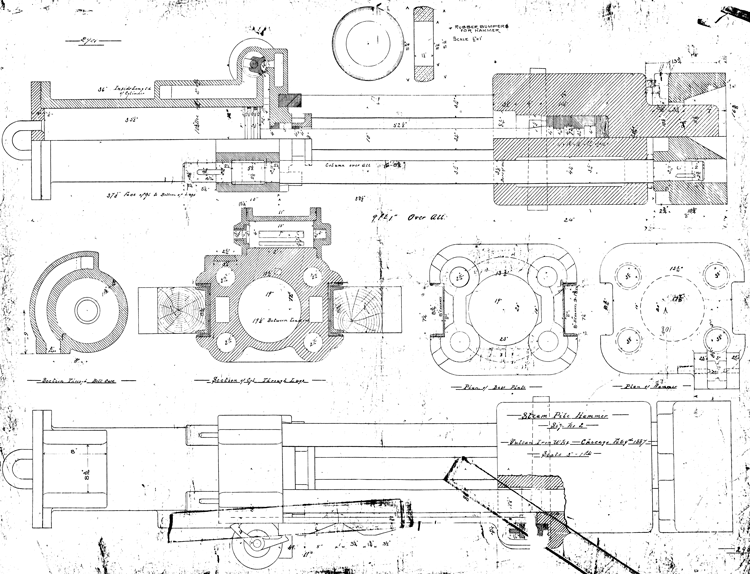

The first extant layout of the Vulcan #2 Hammer, dated 9 February 1887. It’s probably the first extant layout of the Warrington-Vulcan hammer. Until about World War I, it was common practice for Vulcan to lay out the general arrangement and then the shop produce the hammer from just that drawing. It’s an indication of both the skill and the decision making ability of those actually producing the product, and also probably of the involvement of those doing the design work.
D51V1010

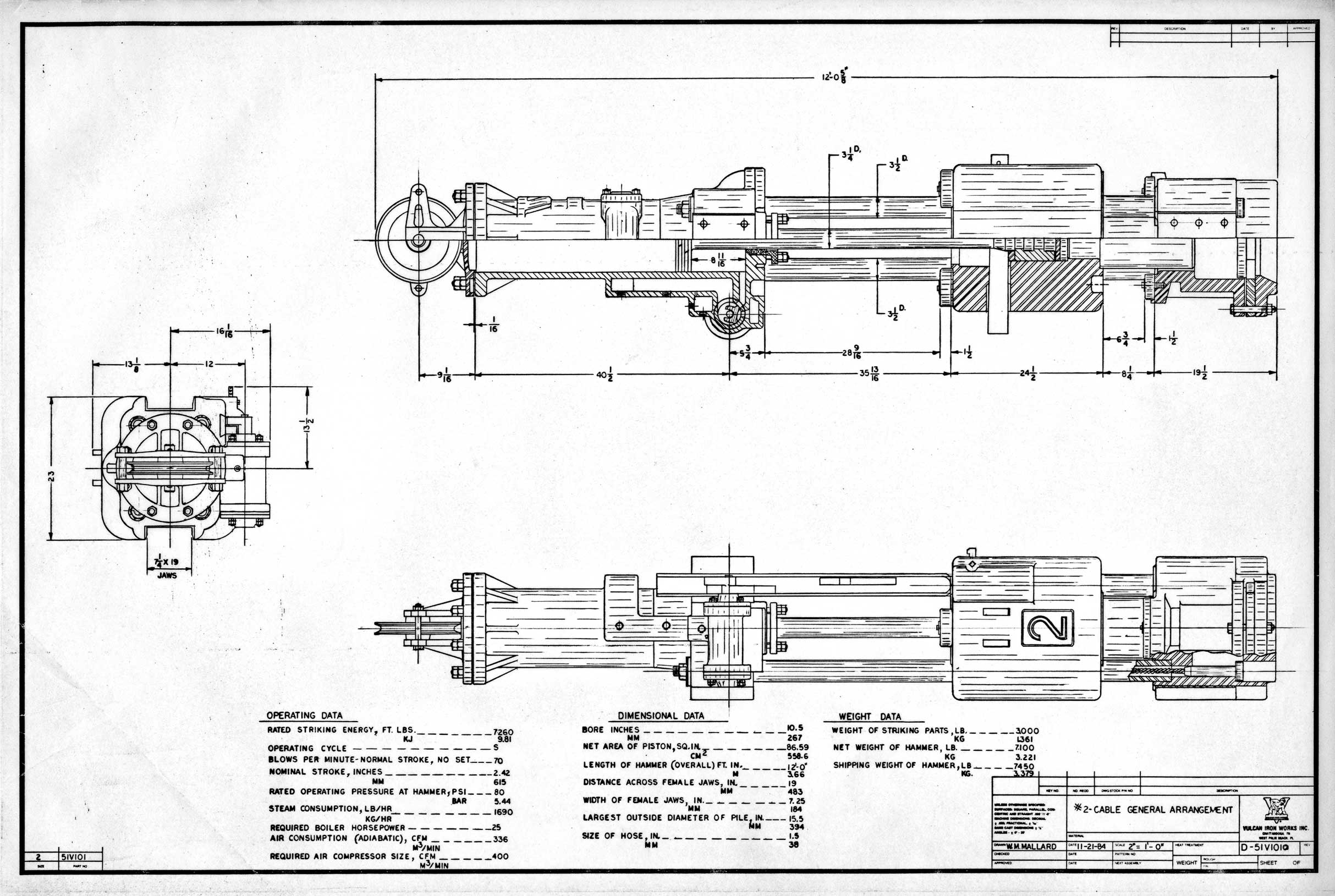

And the last: the cable #2 hammer, sporting a McDermid bases, as many of its keyed counterparts did. It was never built due to the construction cost issues; it was easier, as Vulcan did with the State of Tennessee, to lighten a #1 ram and use that frame.

Specification Sheets for this hammer are as follows:

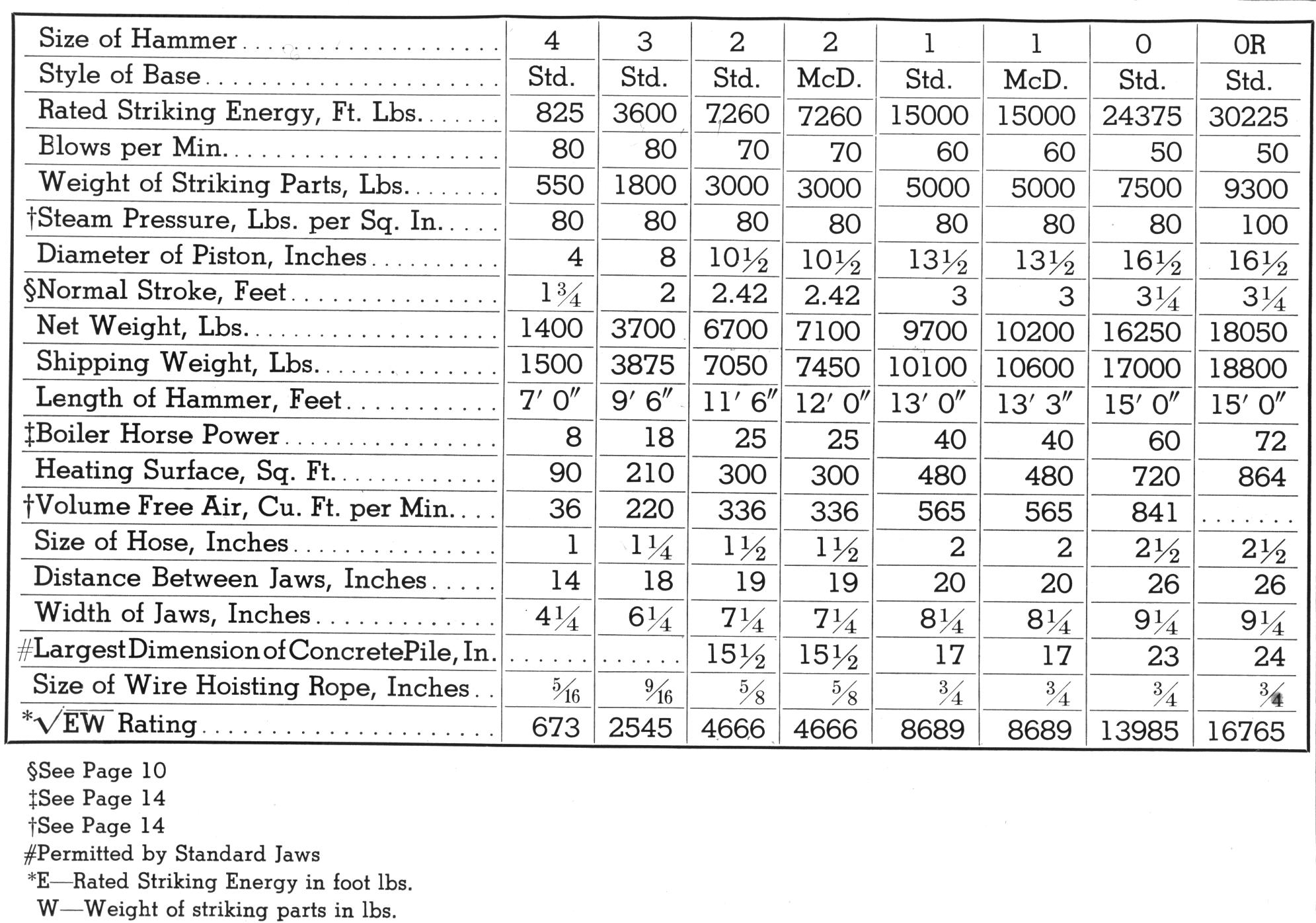

Specifications Bulletin 68
Specifications, Vulcan Bulletin 68
Specifications Bulletin 68G
Specifications, Vulcan Bulletin 68G

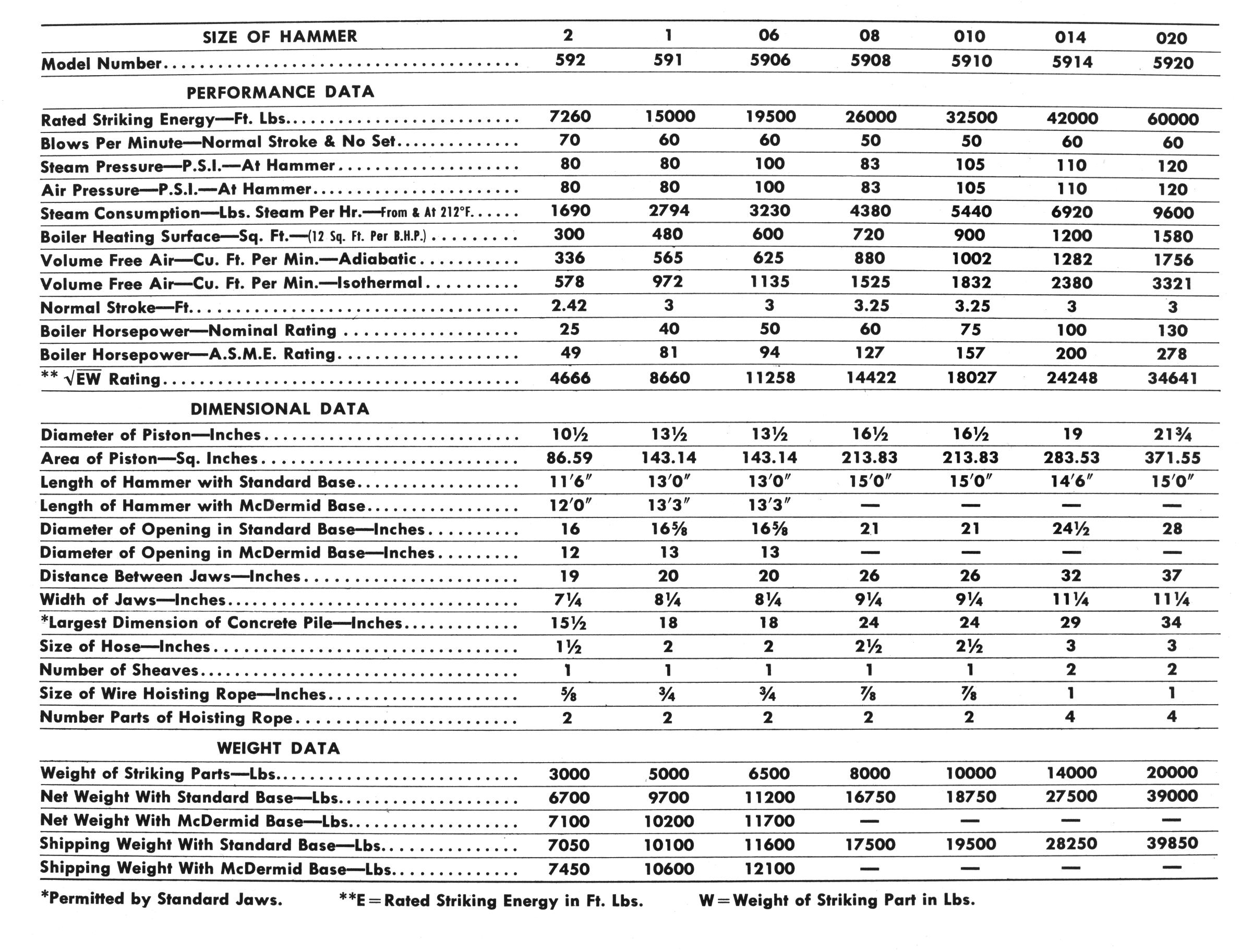

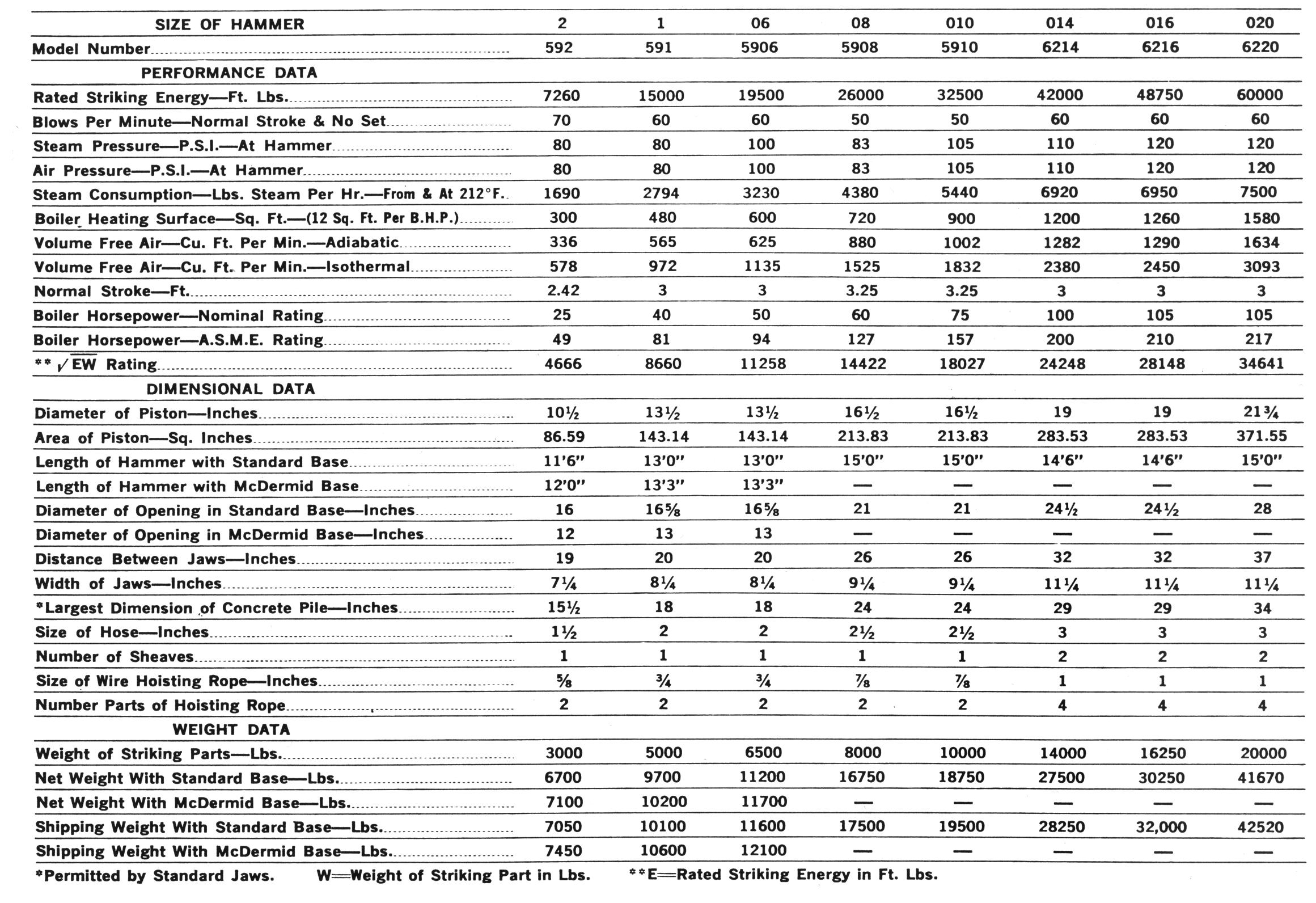

Specifications Bulletin 68K
Specifications, Vulcan Bulletin 68K

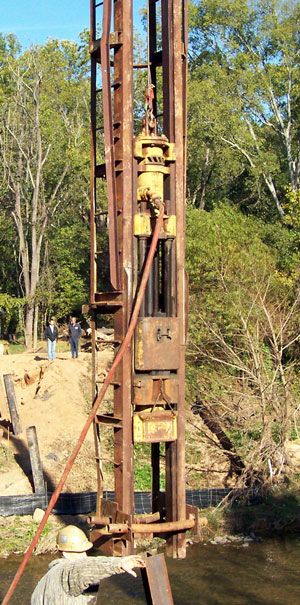

The #2 was very popular for a long time; however, it ran into two difficulties from the 1960’s onward.

The first was that pile specifications were calling for a larger hammer (such as the #1) and contractors found their #2 hammers sitting in the yard with little to do.

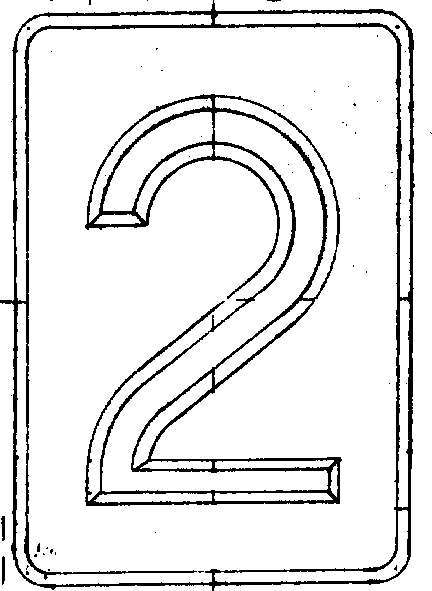

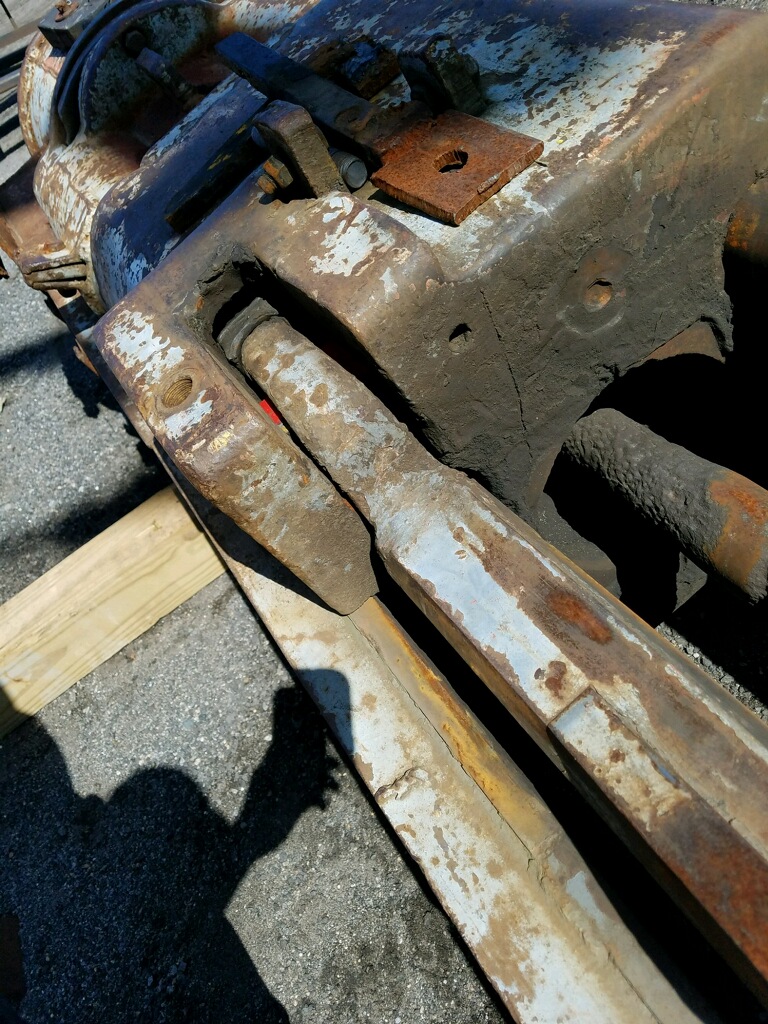

tn2ram

The second, from Vulcan’s standpoint, is that the production costs of the #2 were not much less than the #1.  When Vulcan produced a #2 for the State of Tennessee in the early 1990’s, it simply took the #1 frame and put a 3,000 lb. ram in it.  Since the stroke was longer, more energy was available.

Other information:
