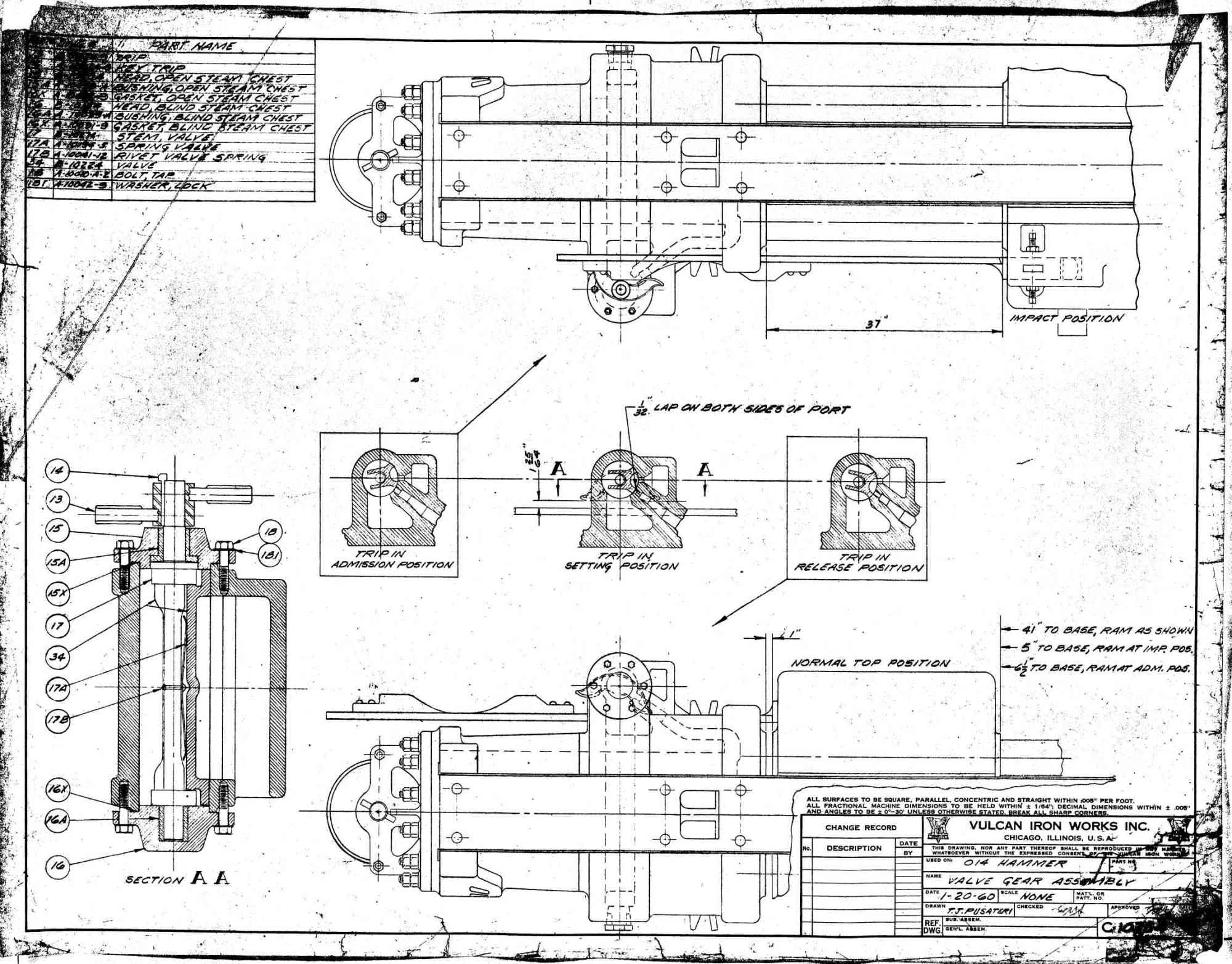

Above is a valve gear diagram for the Vulcan 014 and 016 hammers. It shows the workings of the valve, its positioning during operation and other details. Although Vulcan made improvements after this drawing (valve liners and Vari-Cycle, for example) it shows the basics of the valve which has done well in Vulcan hammers for more than a century.
