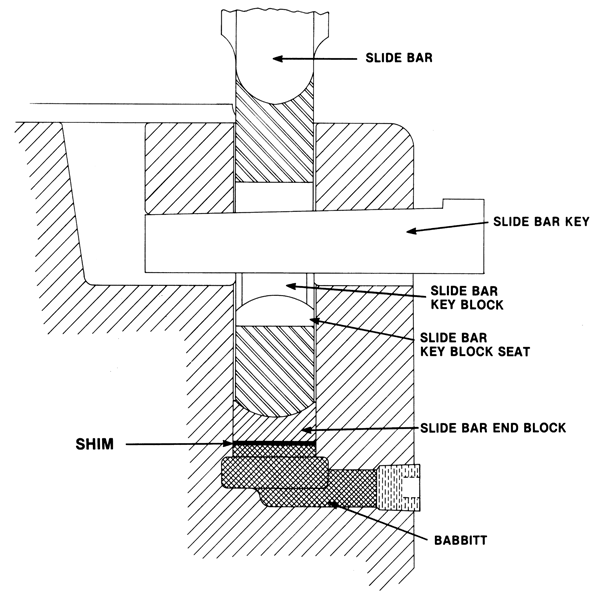

When checking the position of the Slide Bar (as shown in Vulcan Tip No. 2) if you find it below the correct position, add the Shim BELOW THE SLIDE BAR END BLOCK, as shown above. Shims installed under the Slide Bar, for obvious reasons, will create problems.
