Vulcan Offshore Tip #19: Bar and Suspension Head Dimensions

In order to provide the suspension cables for a Vulcan Offshore Hammer, the following dimensional data are provided for bar and suspension heads.

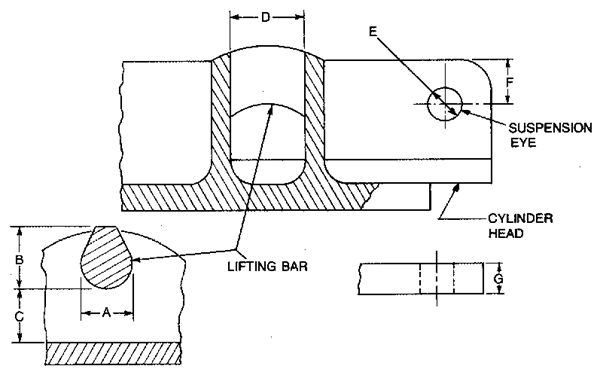

offtip19

HAMMER

DIMENSION (SEE FIGURE), INCHES

Bar and Suspension Heads

Suspension Head Only

A B C D E F G
010 3 1/4> 4 4 1/2 7
014/016/140C 4 1/4 5 5 7 1/2
020/030/530/200C 4 1/2 6 6 7 1/2 2 1/8 3 21/2
040/340/540/400C 5 1/2 7 8 9 2 7/8 5 2 7/8
060/360/560/600C 6 1/2 8 7 5/8 10 2 7/8 6 3 1/2
3100/5100 6 1/2 8 7 3/8 10 4 6 3 1/2
5150 7 7 1/2 9 3/4 10 4 7/8 7 1/2 5
6300 8 10 6 1/4 12 5 6 1/2 4 1/2

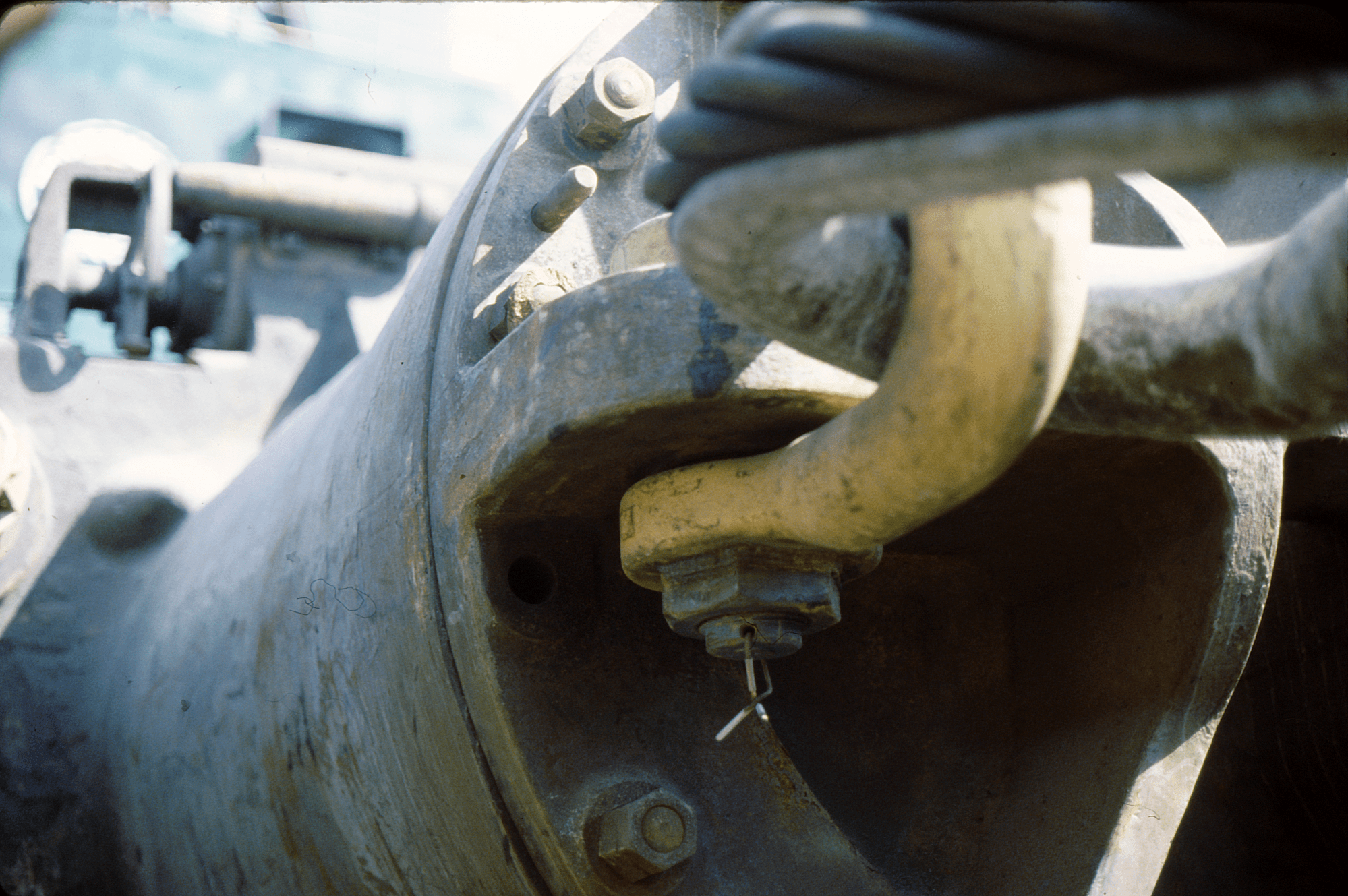

Note: The suspension head dimensions for the 520 and 535 are identical to the 020. The dimensions for the 5110 is the same as the 060.  Some examples of the use of these are shown below.
