Making an Impact on Sheet Piling

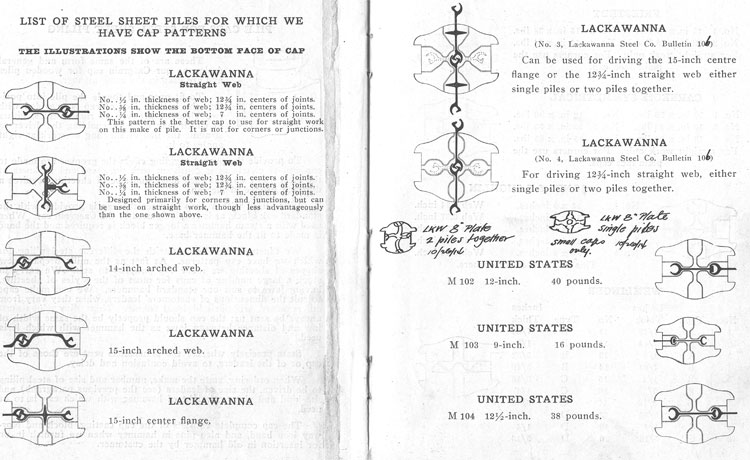

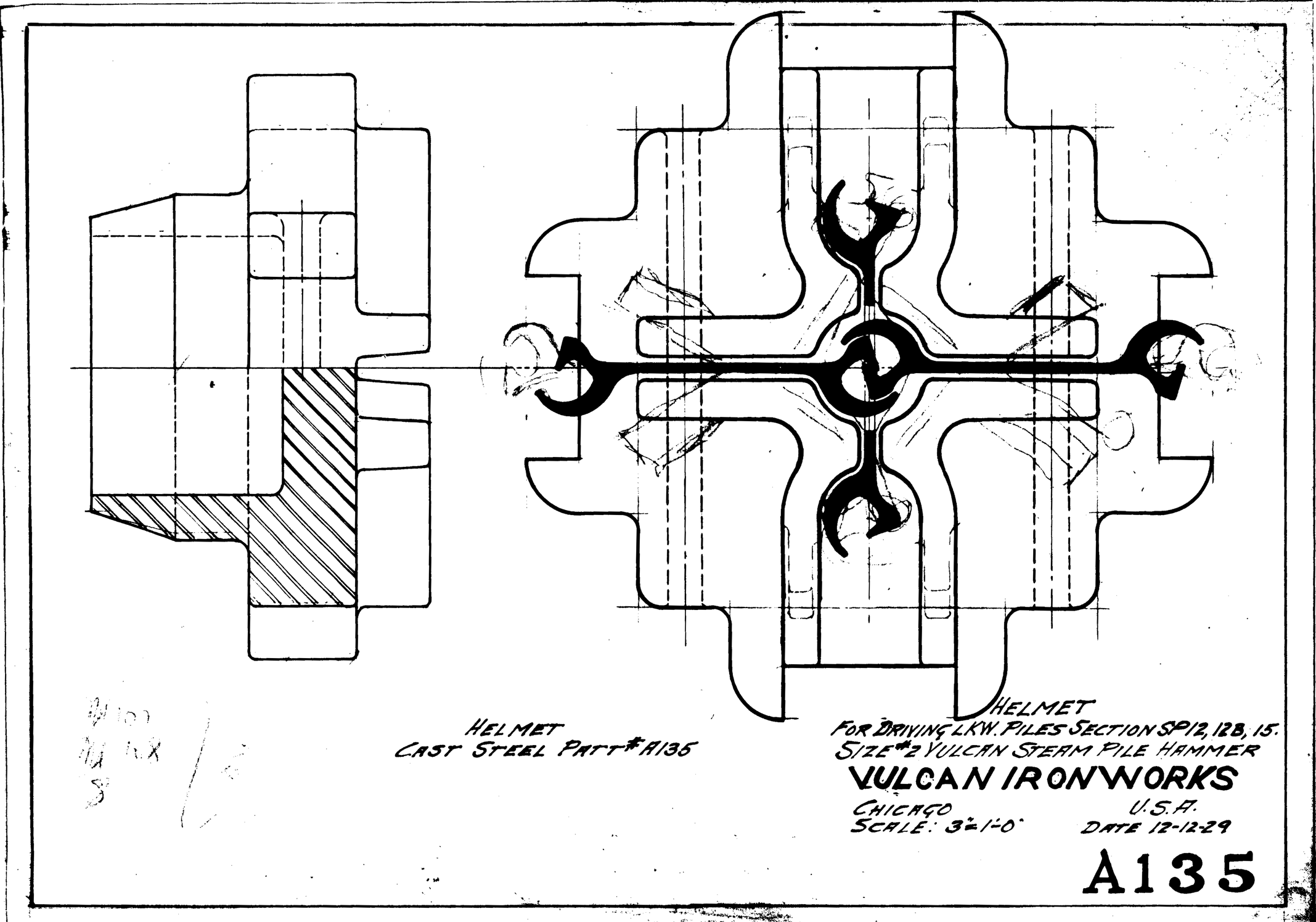

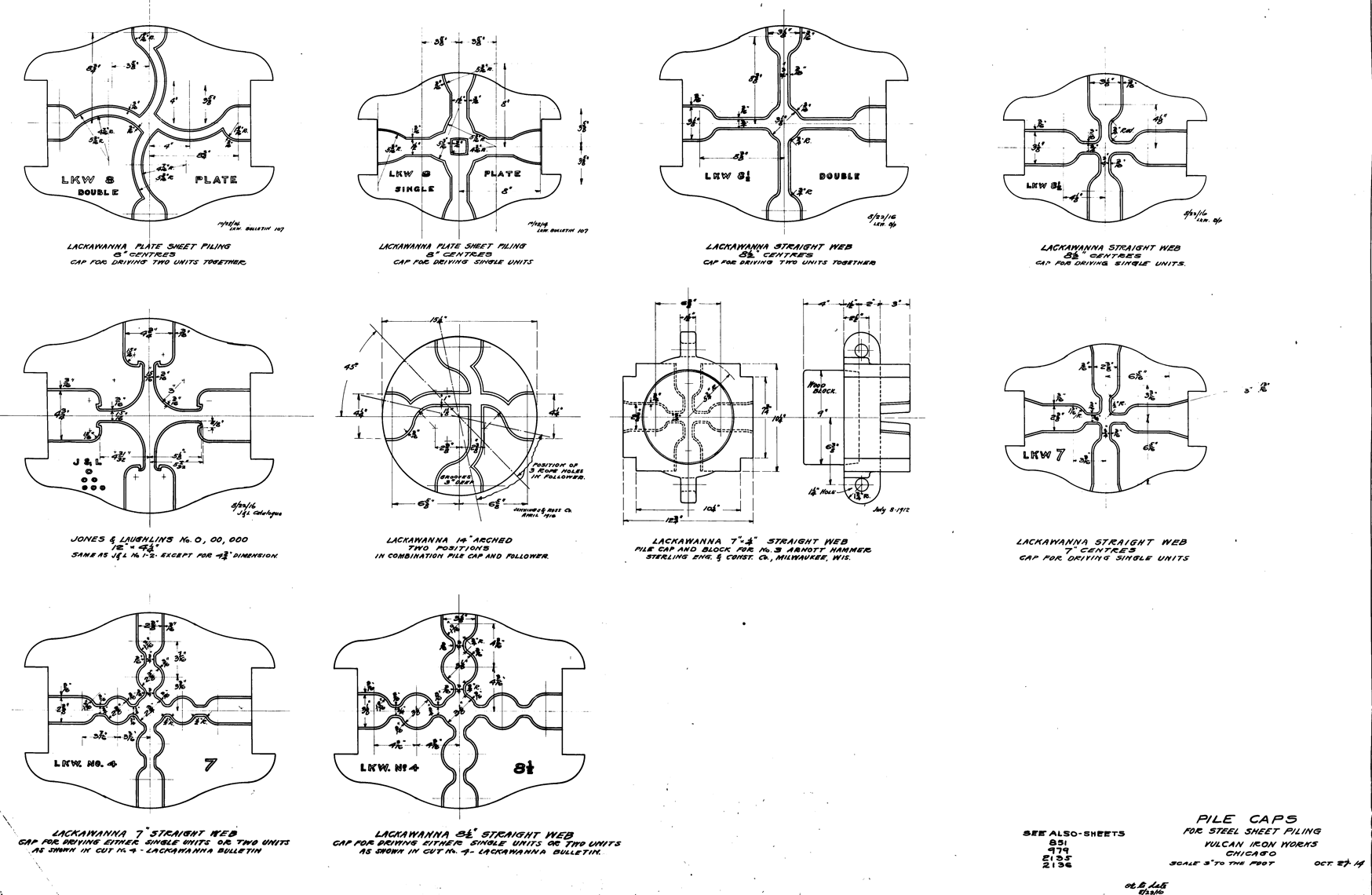

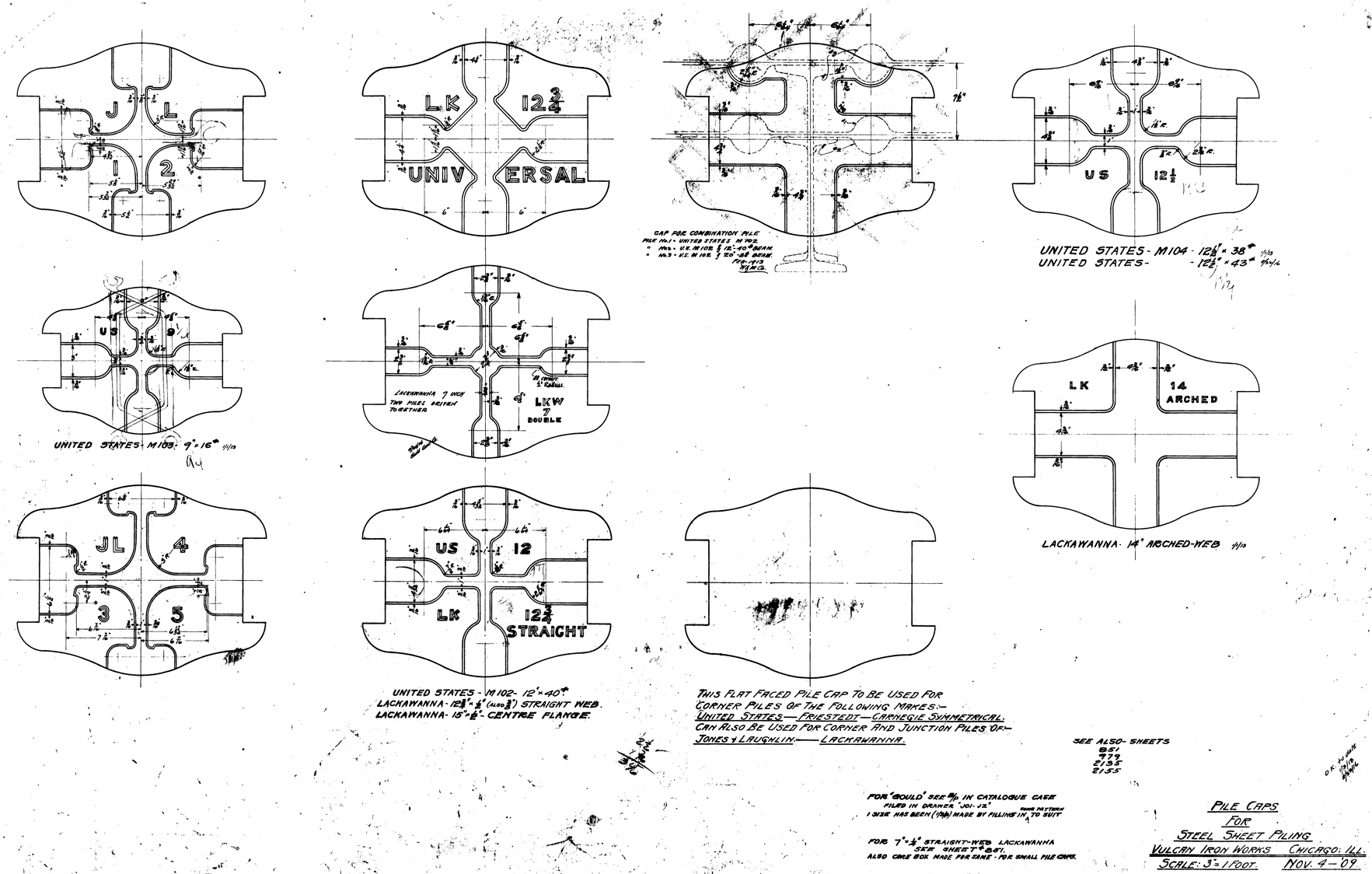

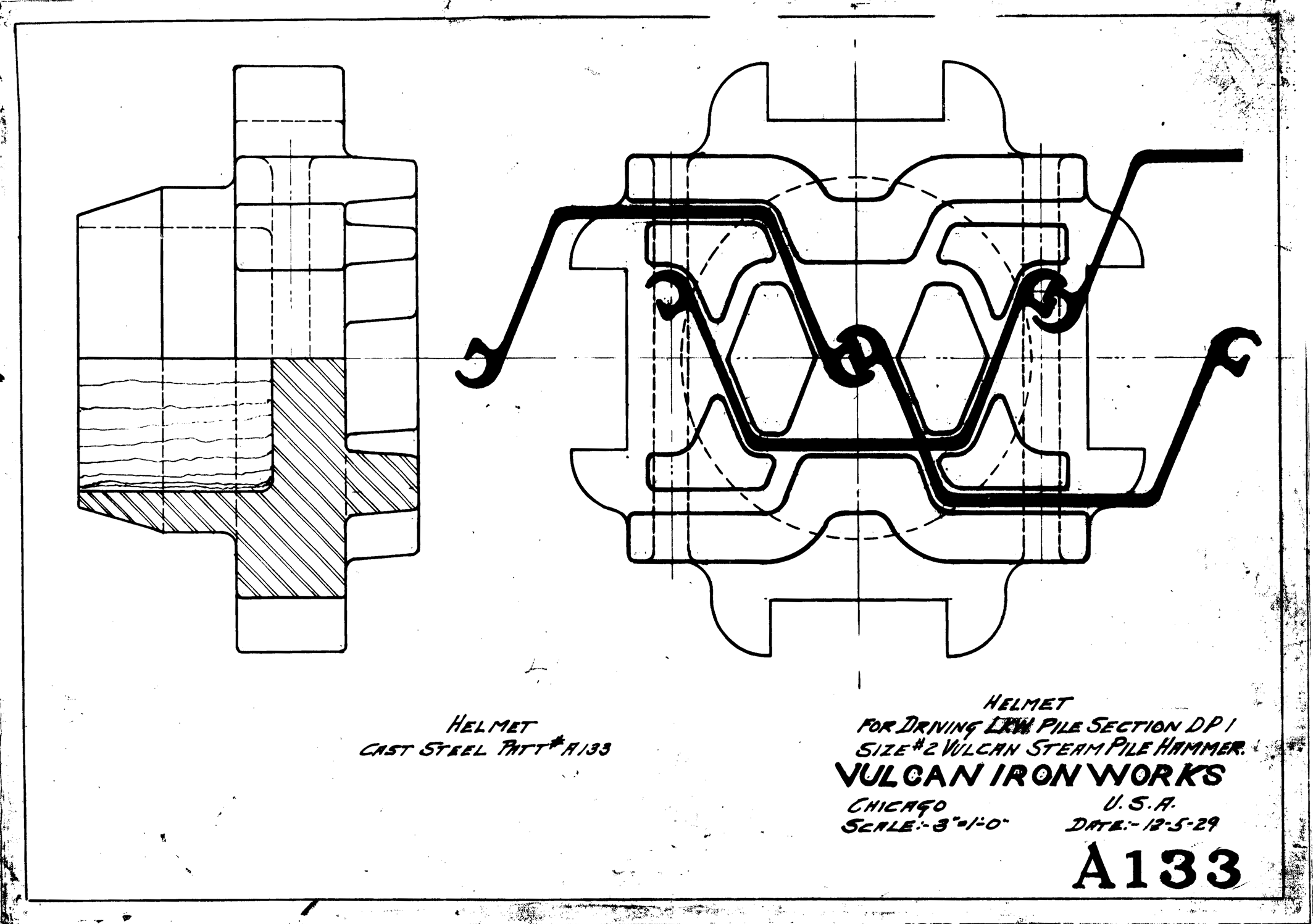

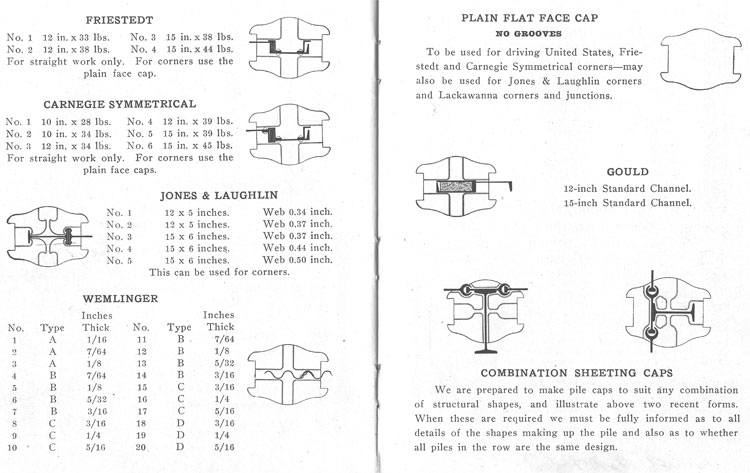

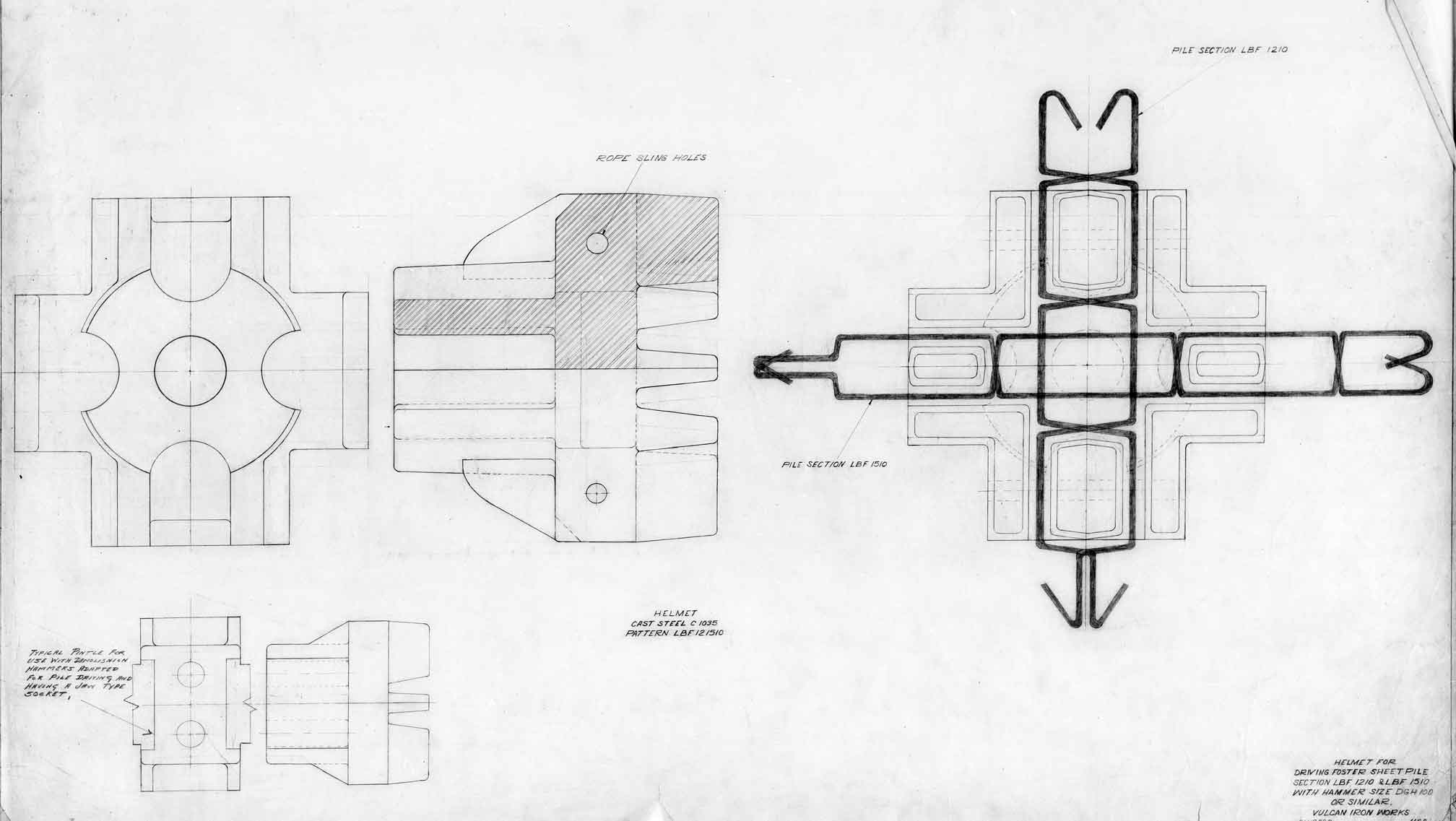

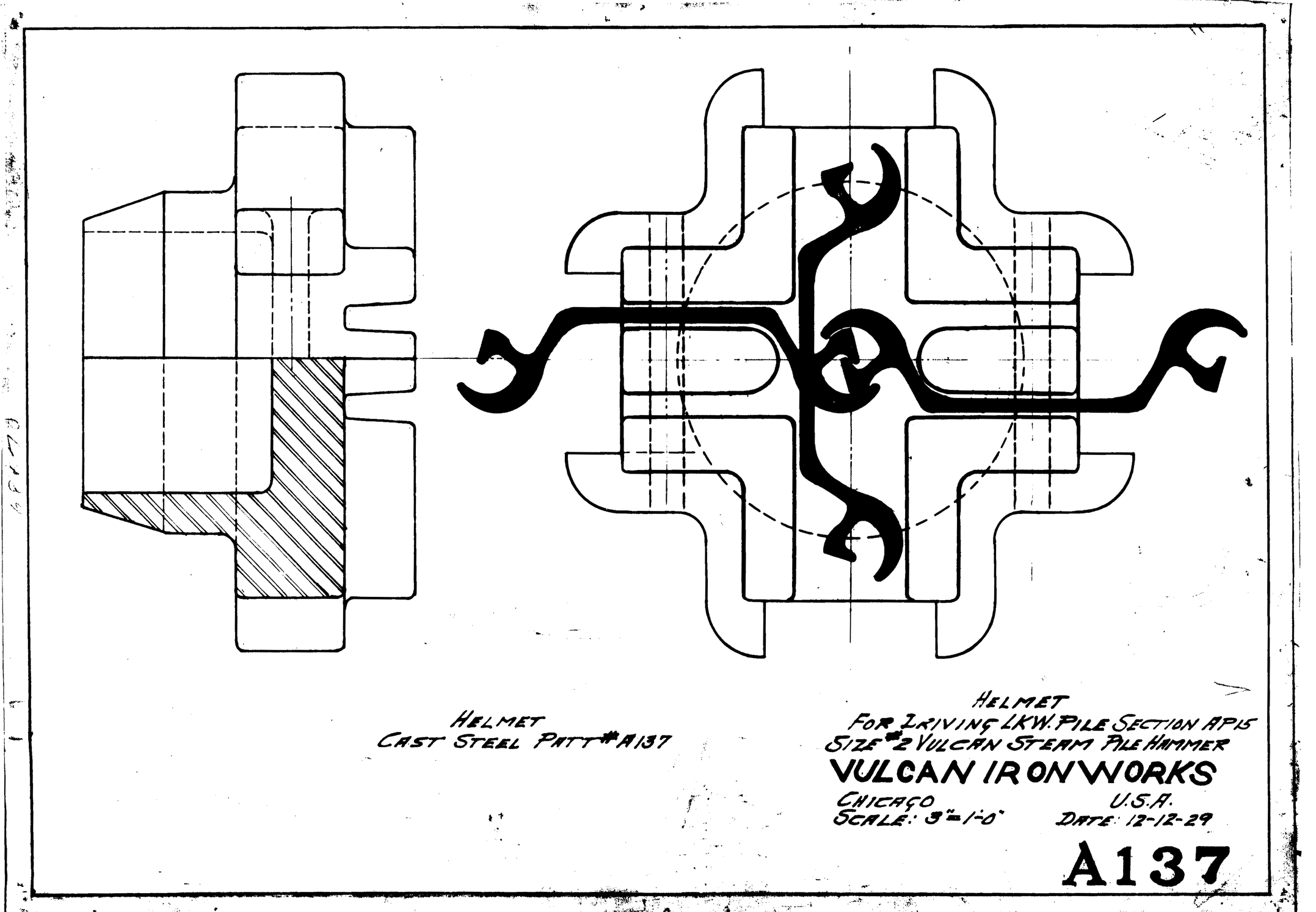

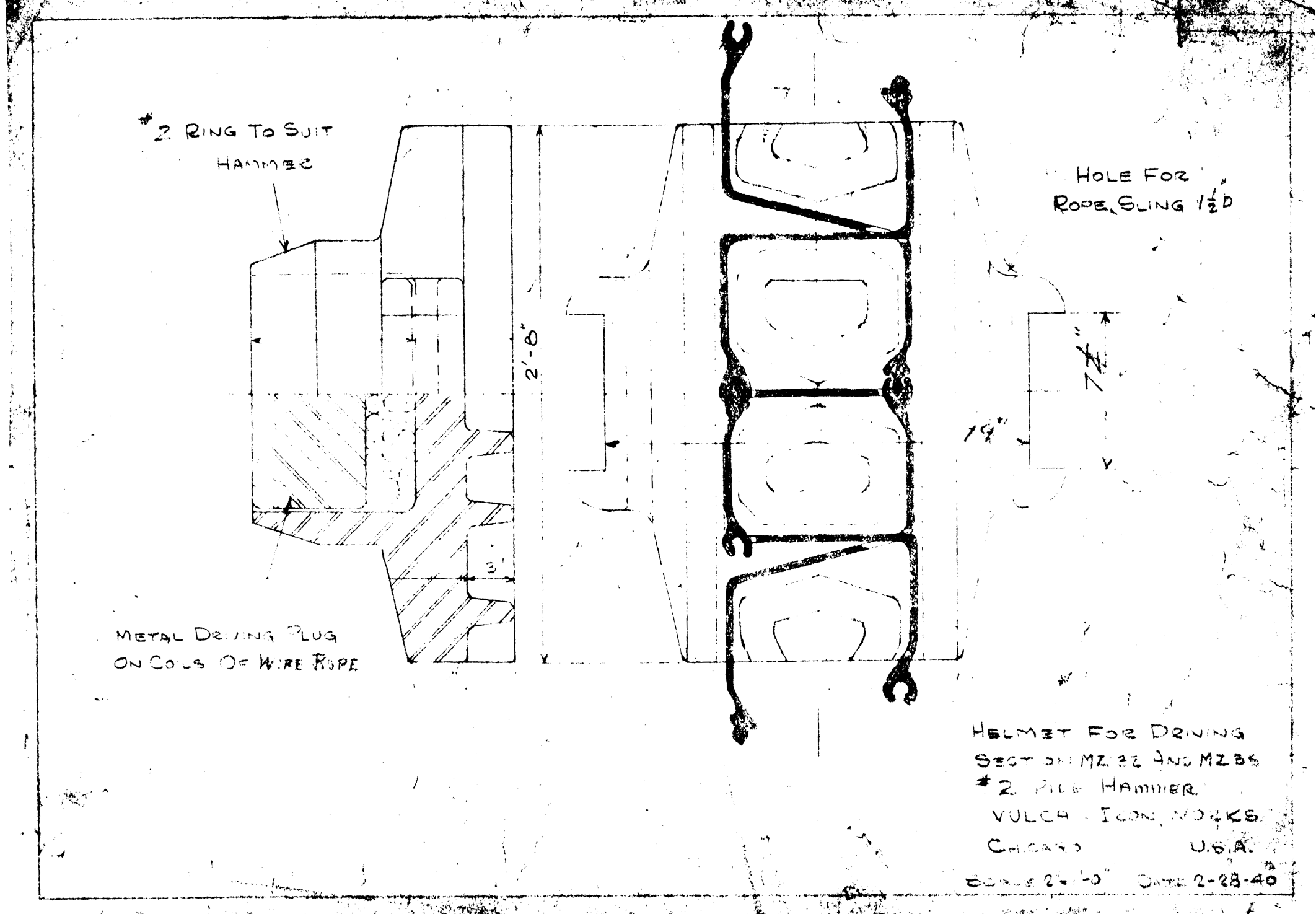

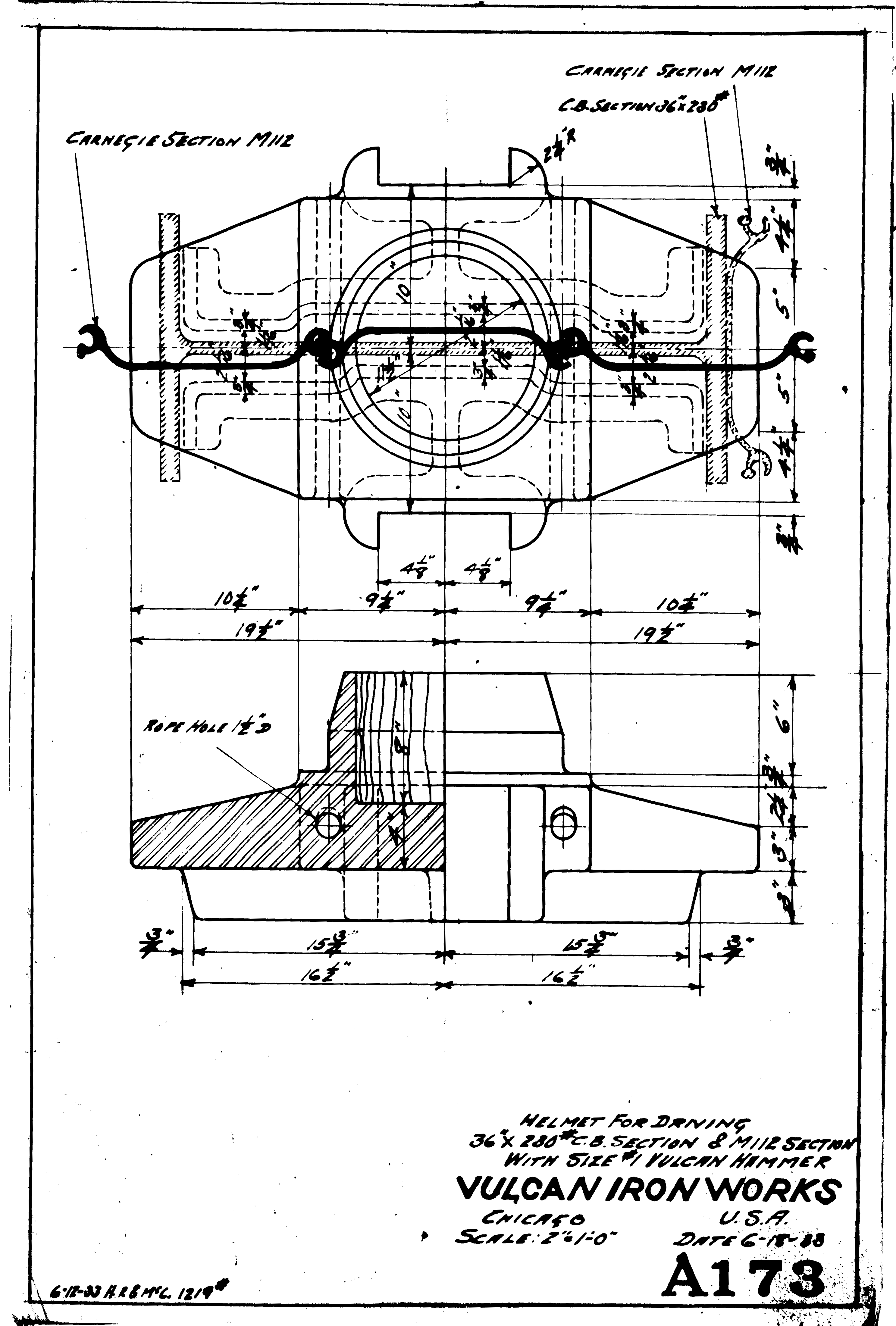

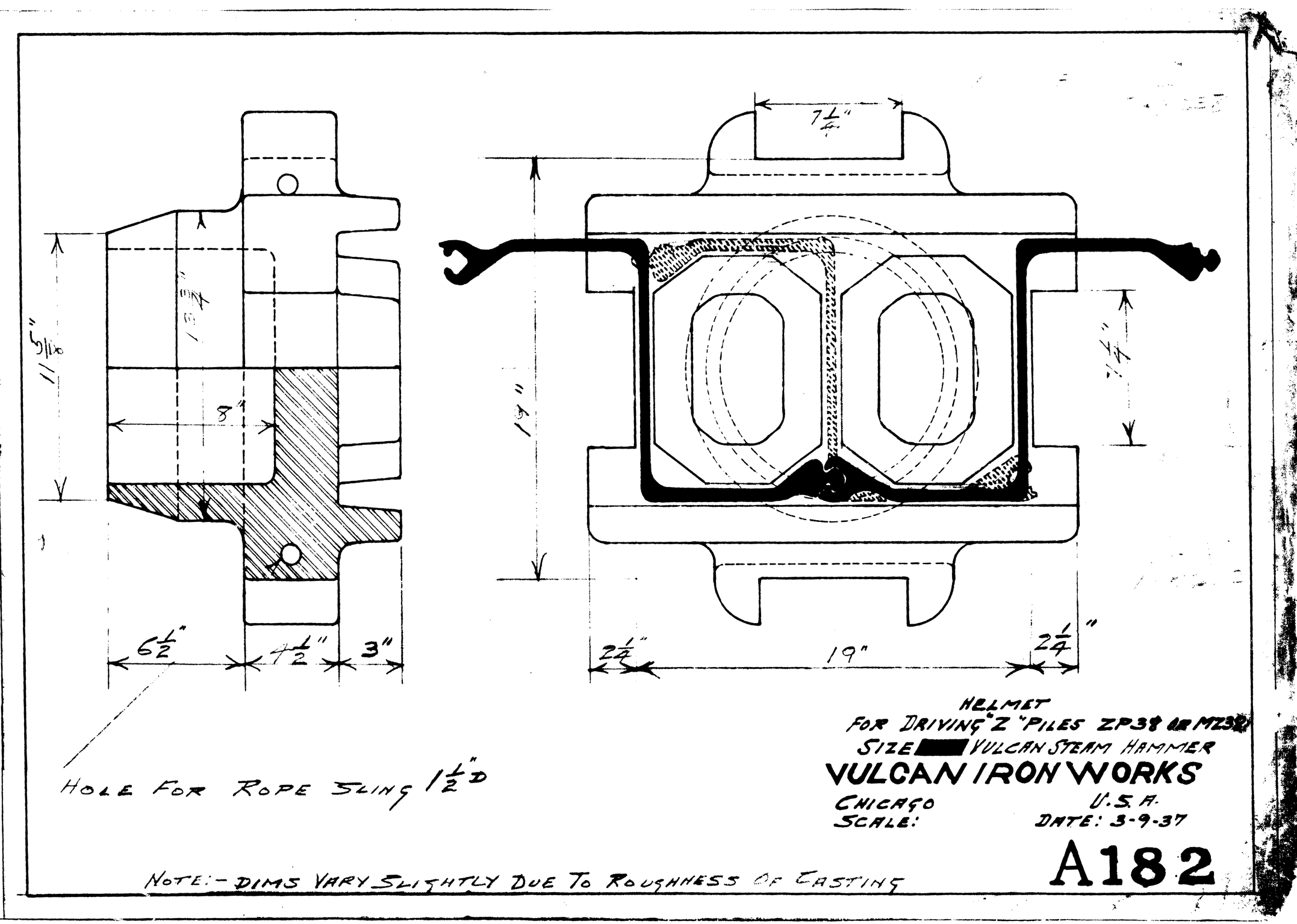

Although the classic Warrington-Vulcan and Super-Vulcan hammers were not the best suited to interface with sheeting, doing so was very common for these versatile hammers. Here are some examples broken down into two parts: the sheeting layouts and the cap configurations. These are from the years Vulcan was in Chicago, before it moved to Chattanooga in 1960.

More information relating to Vulcan, sheeting and sheeting caps:

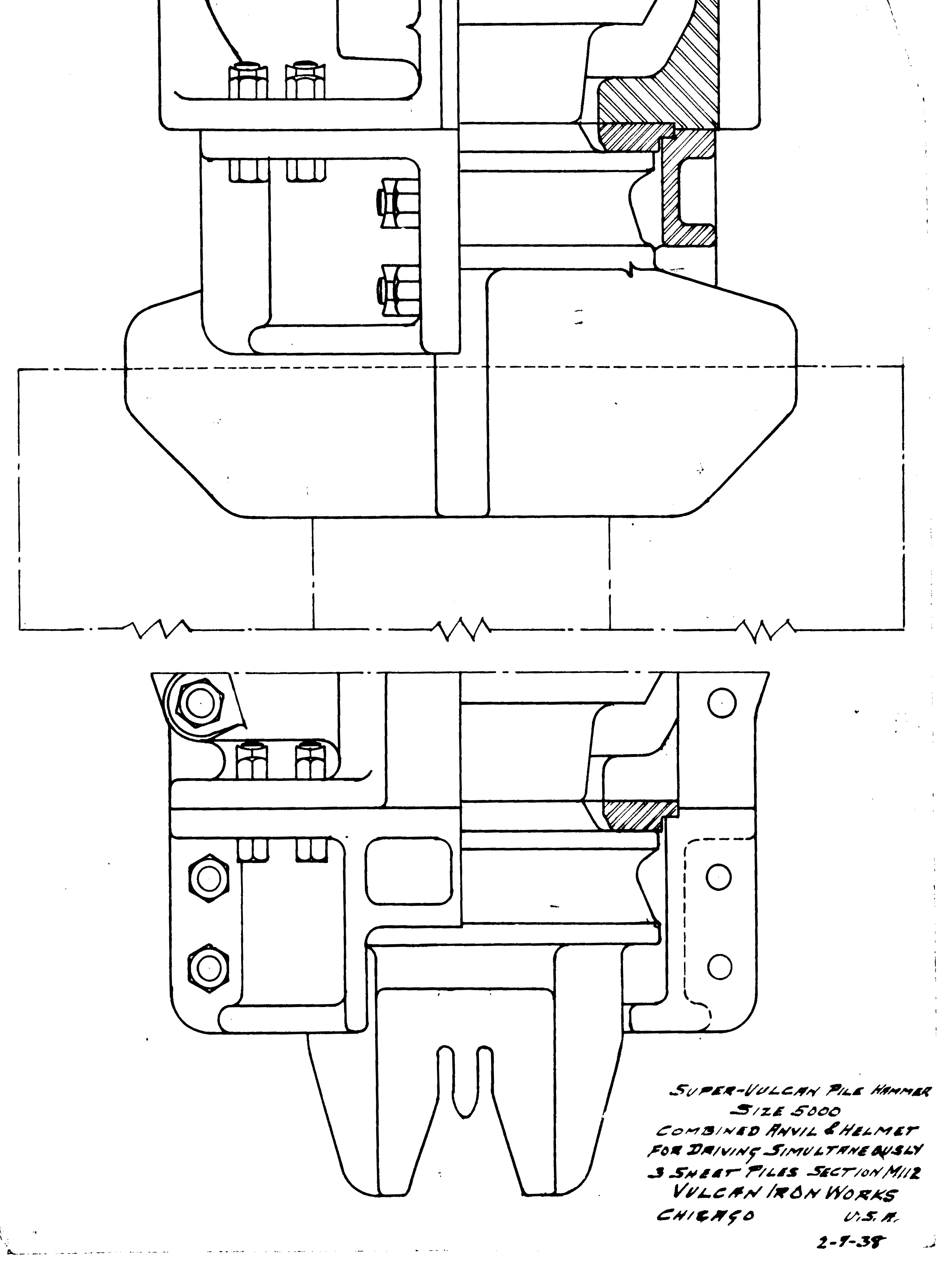

• Vulcan Super-Vulcan hammers, open and closed, the latter like the 5000 shown above
• Overview of Hot-Rolled Sheeting types
