Vulcan 3100 Hammer: Specifications and Information

Like the 060 and even more the 040, the 3100 was a major step up for the company. Even though it became the “gateway” to the company’s largest hammers, itself it was a dead end offshore for reasons that weren’t fully appreciated at the time, at least not by Vulcan or some of its end users.

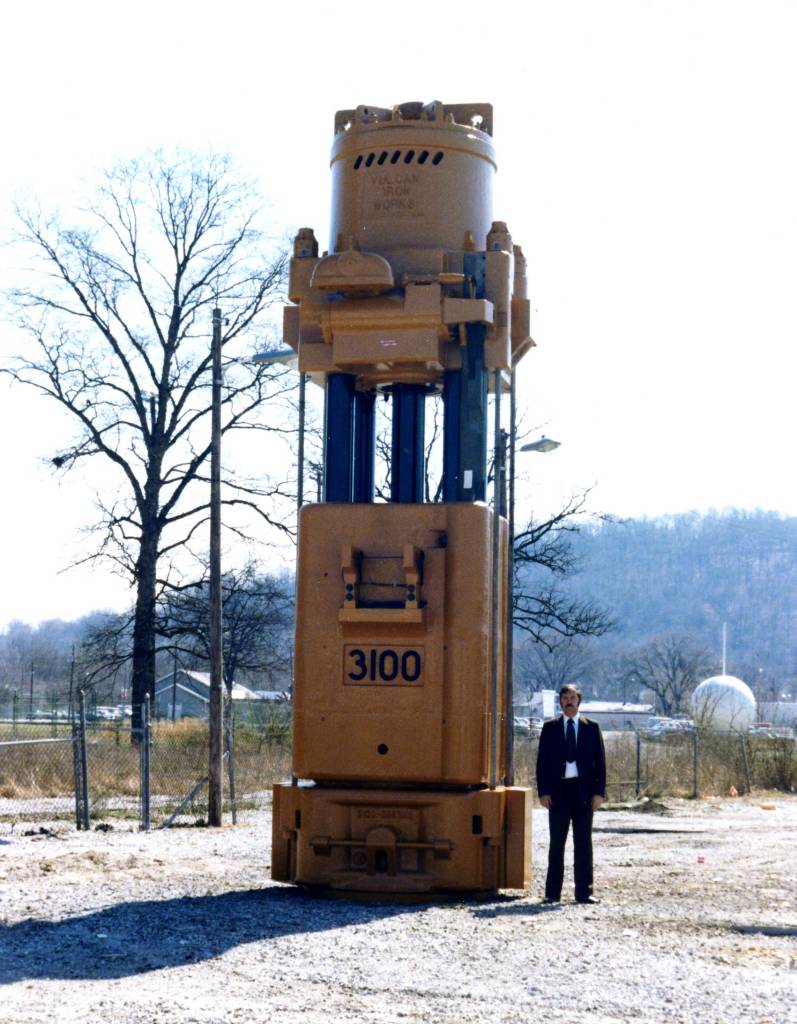

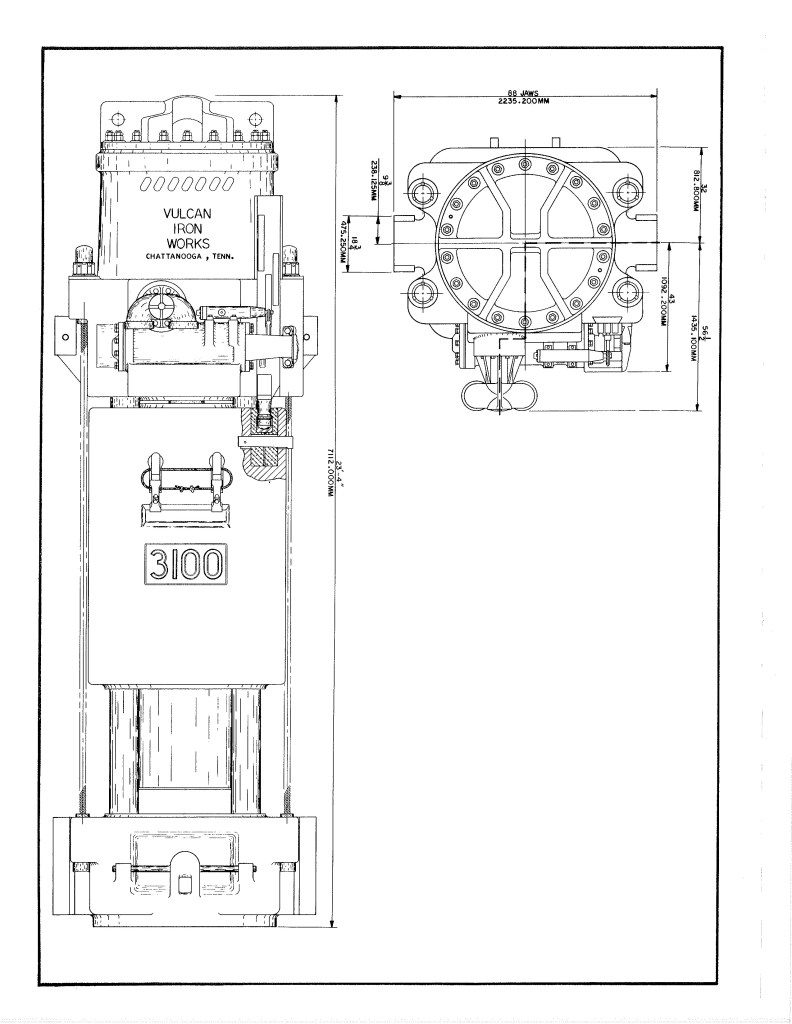

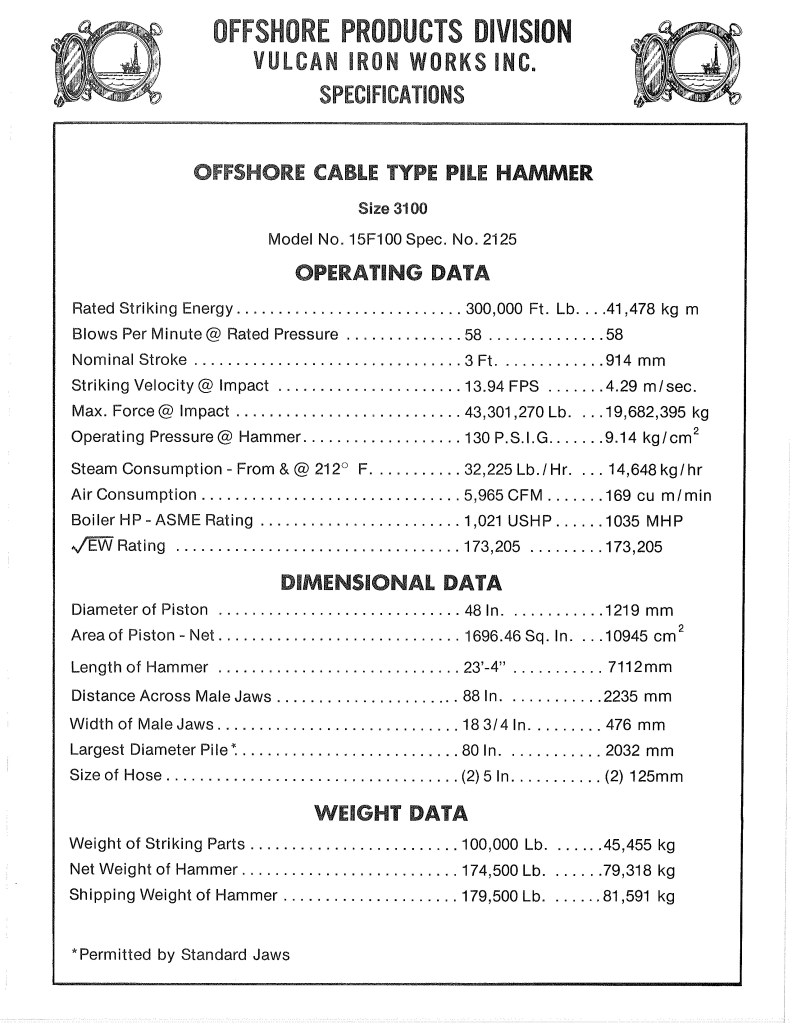

The specifications:

The first 3100 was built for McDermott. Even though the 560 had been introduced earlier and was lighter for the same energy, McDermott felt that the traditional “heavy ram-low striking velocity” approach was better, and also had the crane capacity to handle this size of hammer. The hammer was ordered in the fall of 1973.

The road to completing the hammer was a rough one. That fall was the occasion of the first oil shock, which was great news and bad news at the same time. It was great news because the oil price spikes made the oil industry very active during that decade and early into the next one. It was bad news because the demands on the supply chain of foundries and forge shops, coupled with the energy shortages that resulted from the oil shock itself, made lead times immensely long. And, of course, patterns had to be built for all of the major castings.

The hammer was finally completed on 11 June 1975, but there was another twist: it was assembled on the deck of McDermott’s Derrick Barge 8 in Bayou Boeuf, Louisiana. Vulcan traditionally preferred to ship their hammers assembled, but freight and delivery issues forced this method. It was successful, not only making it simpler to ship the heavy hammer parts in pieces, but also to familiarize the end user’s personnel with the hammer itself. By the 1990’s it became the standard method of delivery for hammers going to the Gulf of Mexico.

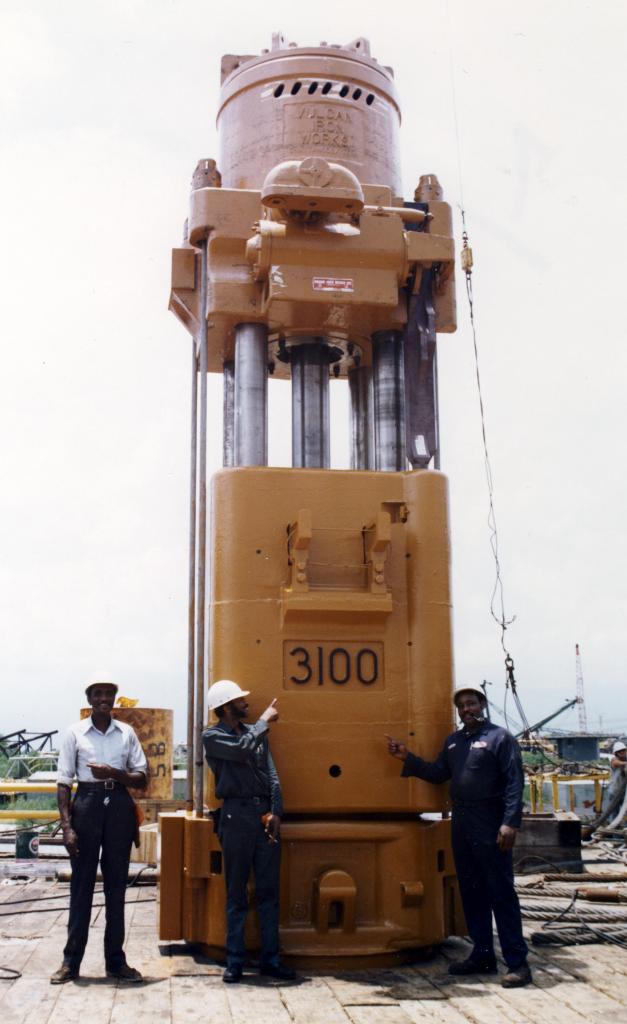

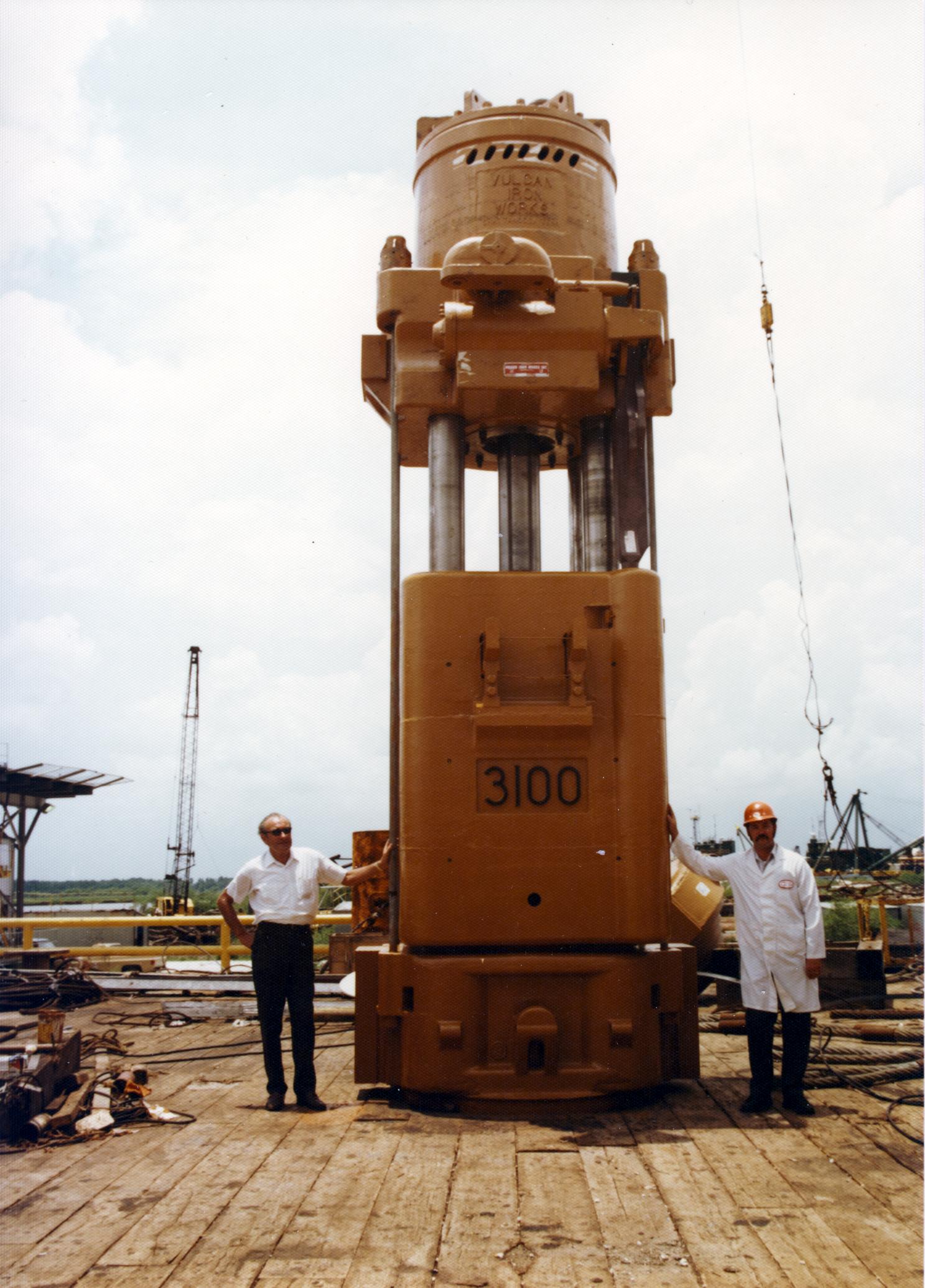

A job well done: Jesse Perry (left) and Norris Tremmier stand beside the 3100 on the deck of McDermott’s DB 8 with the completed 3100, July 1975.

In spite of its difficult production road, the 3100 was successful from the beginning, with fewer of the “growing pains” that some of the earlier hammers had experienced.

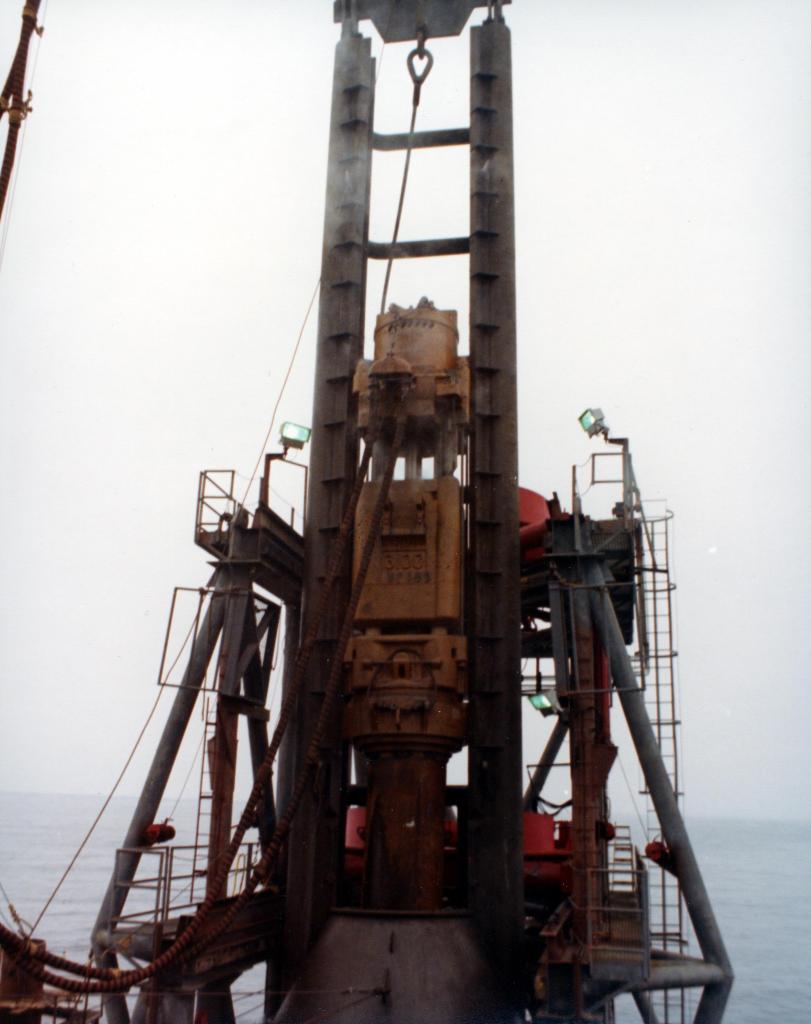

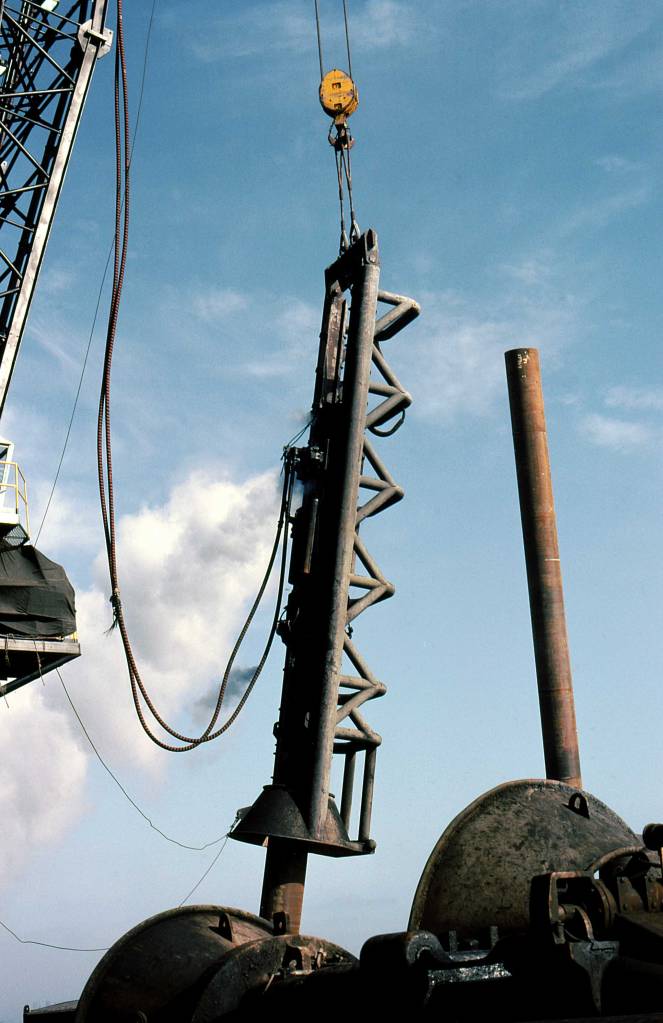

As was the case with the 040, Vulcan used the hammer for advertising purposes, both then and many years later.

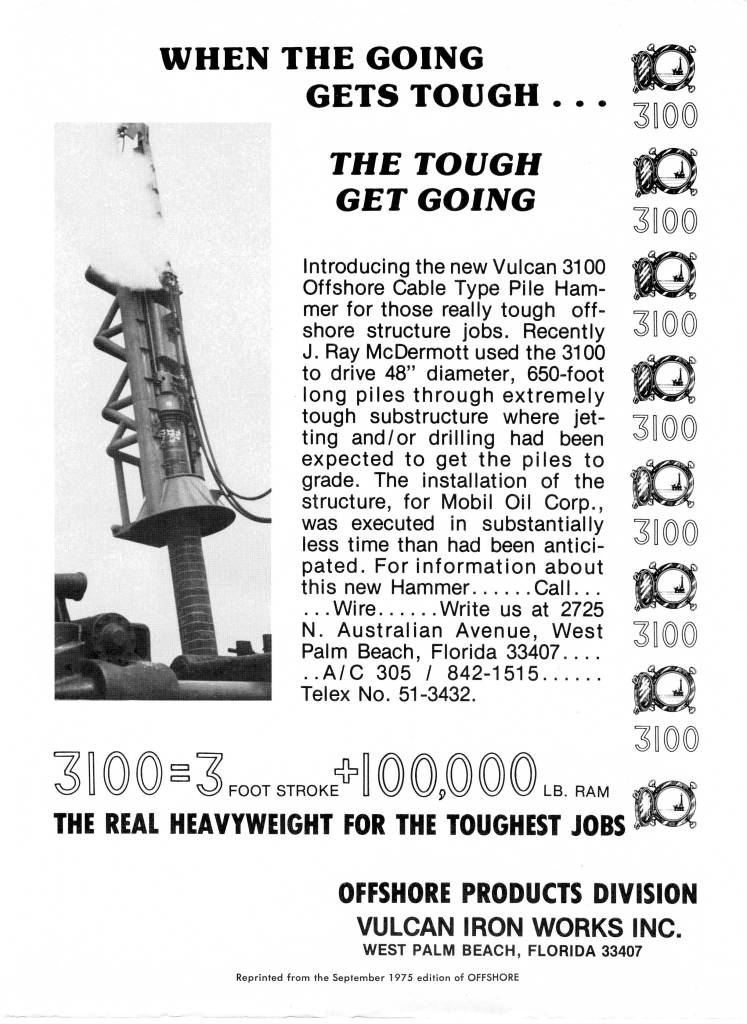

Nixon’s Attorney General John Mitchell gave little comfort when he told his subordinate “when the going gets tough…the tough get going.” The subsequent history of Watergate justified the lack of enthusiasm. Oblivious to this sad history, Vulcan had better success with the 3100, as this ad for the September 1975 issue of Offshore magazine bore out.

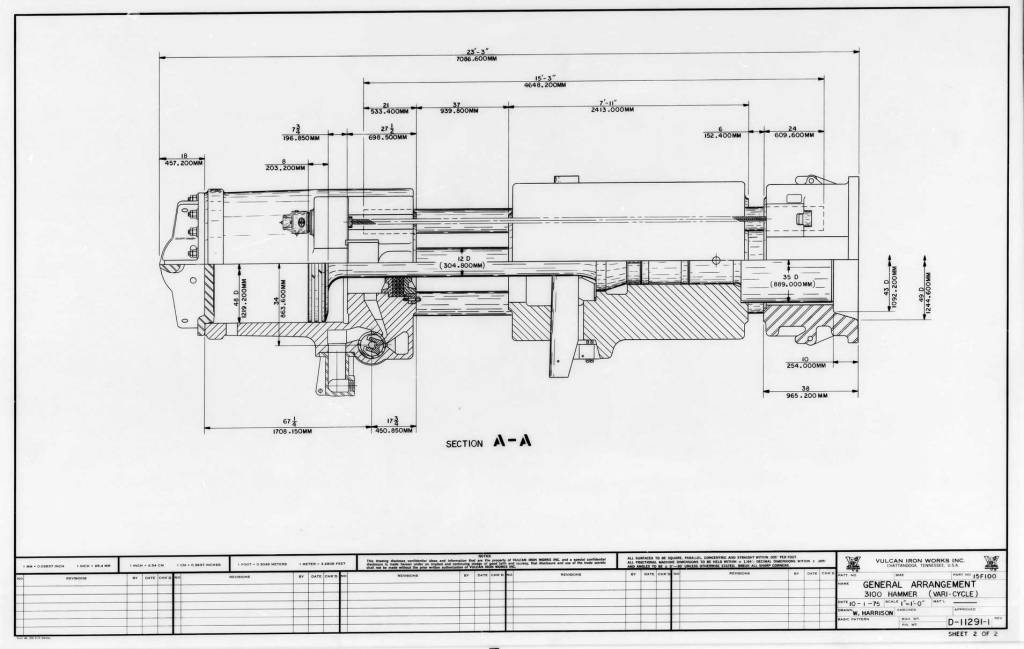

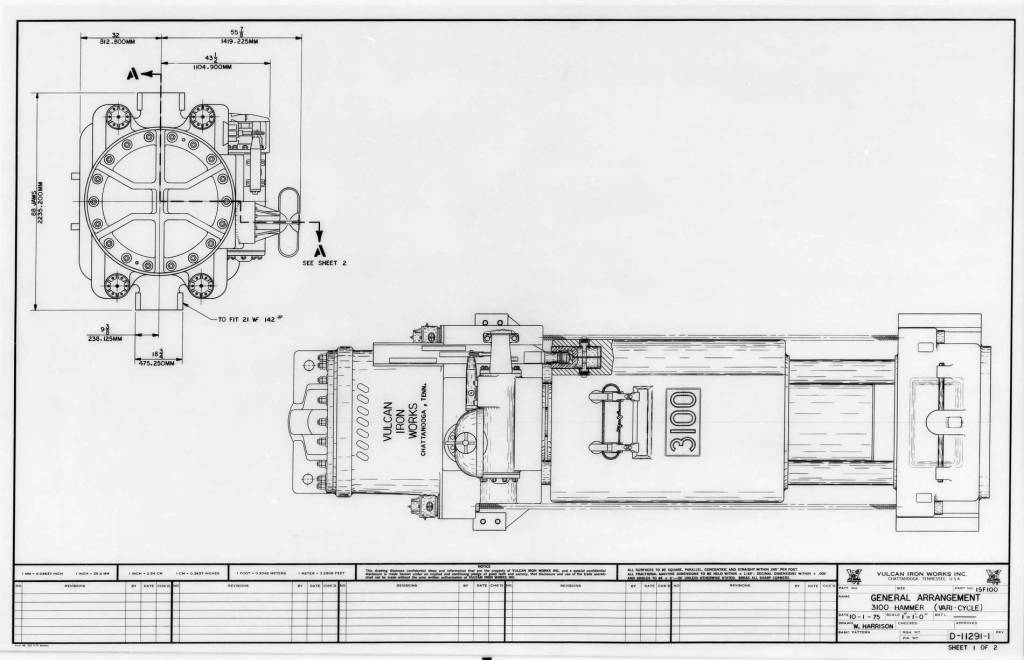

The general assembly is below (the hammer was so large, it required a two-sheet drawing.)

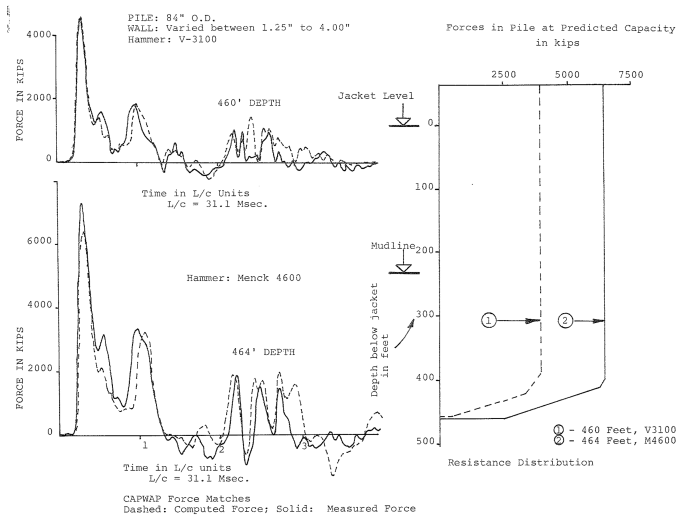

Going head-to-head with the Menck 4600, an early example of the results of instrumenting the pile head. The Menck 4600’s ram was very close to the 3100’s in weight but the Menck benefited from its nearly 5′ stroke. It wasn’t long before Vulcan came out with the 5100 to properly compete with the Menck 4600.

In spite of its success the 3100’s main claim to fame was to be the basis for the 5100. Why was this so?

The first was obvious: the 560, virtually the same energy, was lighter and more economical to produce and operate. The second was that, with offshore high-impedance steel piling, the higher impact velocity, problematic with concrete and wood piles, was actually preferable, albeit harder on the hammer. The hammer never went much past its origin, in spite of the celebration that surrounded its inception.
